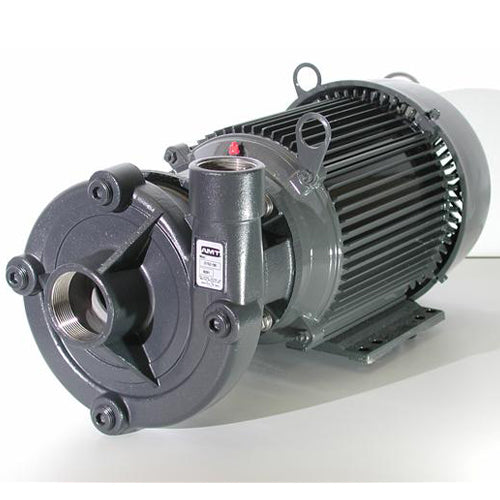

4240-98 AMT Stainless Steel Heavy Duty Straight Centrifugal Pump (7-1/2 HP, 230/460 Volt, 3 Phase, TEFC Enclosure, Viton/SS Seal)
4240-98 AMT Stainless Steel Heavy Duty Straight Centrifugal Pump (7-1/2 HP, 230/460 Volt, 3 Phase, TEFC Enclosure, Viton/SS Seal)
[COUNT] shoppers are looking at this right now
No reviews
SKU:4240-98
Precio habitual
$1,995.33 USD
Precio habitual
$2,993.00 USD
Precio de oferta
$1,995.33 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
AMT 4240-98, 327 Stainless Steel,7-1/2 HP, TEFC,230/460 V, Stainless Steel,Viton/SS
| Applications |
| AMT Heavy Duty Solids Handling End Suction Centrifugal pumps are suited for liquid and chemical transfer, heating and cooling, recirculation, booster service, dirty water and other industrial applications. Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semi-open impeller features self-cleaning ability that makes the unit useful in applications involving up to 1/8" diameter solids and muddy or dirty liquids, as well as clean, clear fluids. Discharge position can be adjusted in 90 increments with vent and drain plugs for all positions. Type 21 mechanical seal and O-ring casing seal. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. |
| Features |
| Stainless Steel, Bronze and Cast Bronze Construction |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
| Stainless Steel Motor Shaft and Hardware |
| NEMA TEFC Single and Three Phase Motors, Depending on Model |
| Self-cleaning Stainless Steel Impeller |
| ** Pumps are not self-priming and require flooded suction. ** |
Specifications | |
Brand |
AMT |
Catalog Number |
4240-98 |
Type |
Heavy Duty Straight Centrifugal Pumps |
Series |
327 Stainless Steel |
HP |
7-1/2 |
TYPE |
TEFC |
FRAME |
184JM |
Voltage |
230/460 |
PHASE |
3 |
CONSTRUCTION |
Stainless Steel |
Suction |
2" |
Discharge |
1-1/2" |
SEAL |
Viton/SS |
SHIP WT (Lbs.) |
134 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
