AMT

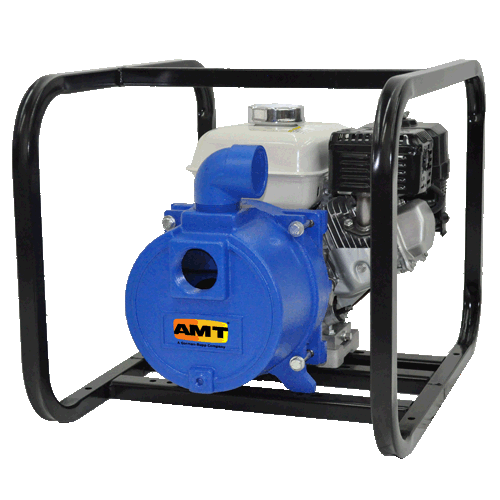

AMT Pumps 3932-95, 2" Engine Driven Trash Pump (5HP, Honda GX160, 2" NPT Port, 2 HR Run Time, .82 Gallon Tank Size, 1" Dia Max Solids)
AMT Pumps 3932-95, 2" Engine Driven Trash Pump (5HP, Honda GX160, 2" NPT Port, 2 HR Run Time, .82 Gallon Tank Size, 1" Dia Max Solids)
No reviews
SKU:3932-95
Precio habitual
$1,185.71 USD
Precio habitual
$1,826.00 USD
Precio de oferta
$1,185.71 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
AMT 3932-95, 2" Engine Driven Trash Pumps Series B Curve, 2" NPT,Honda GX160,5 HP HP Class
| Applications |
| AMT Cast Iron Engine Driven Trash pumps are designed for applications which require high flow efficiency, solids handling capability and abrasion resistance. This series of pumps are also good for chemical spraying, handling and processing. These pumps are constructed of heavy duty CNC machined cast iron components featuring removable/replaceable cast iron volute and impeller. Simple four bolt clean out design permits easy removal of trash and debris without disconnecting hoses. Pumps are available with gasoline overhead valve or diesel engines from various engine manufacturers. |
| Features |
| (2) NPT Pipe Nipples & 2" Street Elbow Included |
| Viton/Silicon Carbide Mechanical Seal |
| Viton O-ring and Casing Seal |
| Self-primes to 20 Feet with Built-in Viton Check Valve |
| Stainless Steel Shaft Sleeve |
| Steel Suction Strainer Included |
| Cast Iron Replaceable Volute/Wearplate and Impeller |
| Maximum Temperature 180 F |
| Maximum Working Pressure 75 PSI |
| Heavy Duty Steel Roll Frame Included |
| B & S Vanguard and Honda Engines are Overhead Valve (OHV) Designs with Low Oil Alert |
Specifications | |
Brand |
AMT |
Catalog Number |
3932-95 |
Type |
Trash Pumps |
Series |
2" Engine Driven Trash Pumps |
Curve |
B |
Port |
2" NPT |
Driver |
Honda GX160 |
Seal |
Viton/ SIC |
Run Time (Hours) |
2 |
Tank Size (Gal/Ltr.) |
0.82/3.1 |
Ship Wt. (Lbs.) |
105 |
HP Class |
5 HP |
Suction |
2" NPT |
Discharge |
2" NPT |
Max Solids |
1" Diameter |
| Oil Alert | Included |
L |
24.0 [61.0] |
W |
19.2 [48.7] |
H |
18.6 [47.2] |
Optional Wheel Kit |
C402-90 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
