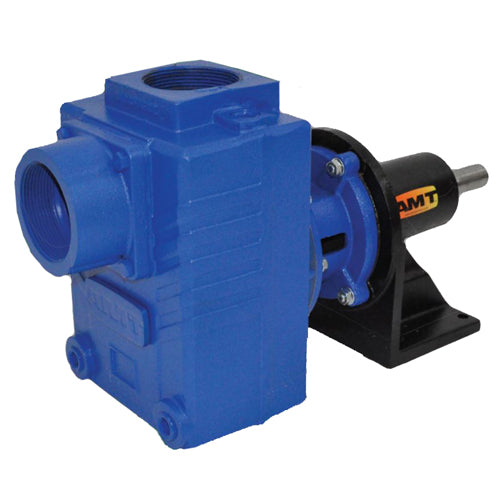

3931-99 AMT 2" Self-Priming Solids Handling Pedestal Drive Pump (5 HP, Viton Seal, 2" Suction and Discharge, 3/16" x 1-7/8" Keyway)

3931-99 AMT 2" Self-Priming Solids Handling Pedestal Drive Pump (5 HP, Viton Seal, 2" Suction and Discharge, 3/16" x 1-7/8" Keyway)

[COUNT] shoppers are looking at this right now

3931-99

$729.33 USD
$1,094.00 USD $729.33 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

AMT 3931-99, Self-Priming Solids Handling Pedestal Drive Pumps,2" Female,Viton Seal, 5 HP
Applications
AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron or thermoplastic construction material. The units feature 3/8" to 2" solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. The 3" & 4" trash pump models feature cleanout covers with quick release handles for removal of debris. All units are self-priming to 20 feet.
Features
Cast Iron Construction
Viton Check Valve and O-Rings
2" NPT Suction & Discharge Ports
Maximum Temperature 180 F
Self-priming to 20 Ft.
Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings

Specifications

Brand
AMT
Catalog Number
3931-99
Type
Pedestal Drive Pumps
Series
Self-Priming Solids Handling Pedestal Drive Pumps
Curve
E
Construction
Cast Iron
SUC
2" Female
DIS
2" Female
L
15.0"
W
5.0"
H
8.9"
Keyway
3/16" x 1-7/8"
Seal
Viton
CNC Machined Shaft
3/4" Diameter
Solids Handling Capability
1" Diameter
Required HP @ 3600 RPM
5
Motor
NOT INCLUDED
Ship Wt. (Lbs.)
59
Warranty
1 Year
Notes
See Support Documents
