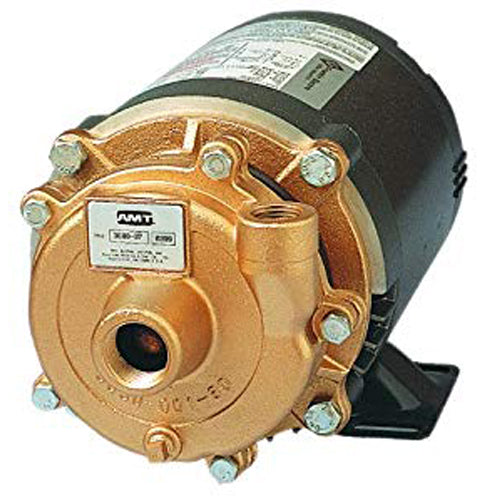

370C-97 AMT Bronze Straight Centrifugal Pump (3/4 HP, 3 Phase, 230/460 Volt, TEFC, 56J Frame, Viton Seal, Bronze Impeller, 3/2 FLA)
370C-97 AMT Bronze Straight Centrifugal Pump (3/4 HP, 3 Phase, 230/460 Volt, TEFC, 56J Frame, Viton Seal, Bronze Impeller, 3/2 FLA)
[COUNT] shoppers are looking at this right now
No reviews
SKU:370C-97
Precio habitual
$712.67 USD
Precio habitual
$1,069.00 USD
Precio de oferta
$712.67 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
AMT 370C-97 , Bronze Centrifugal Pumps Series, 3/4 HP, 3 PH, TEFC Type, 56J Frame, 230/460 VAC/60HZ
| Applications | |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pull-from-rear design for easy service without disturbing any piping. Self-cleaning impeller prevents clogging and handles solids of 1/8? diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction. | |
| Features | |
| Available in: 300 Series Investment Cast Stainless Steel, Cast Bronze and Cast Iron with Stainless Steel Impeller Construction | |
| Viton Mechanical Seal and O-Ring with Stainless Steel and Bronze Models | |
| Buna-N Mechanical Seal and O-Ring with Cast Iron Models | |
| Discharge Port Rotates in 90 Increments | |
| Self-Cleaning, Semi-Open Impeller | |
| Maximum Flow 90 GPM | |
| Maximum Head 65 Ft. (28 PSI) | |
Specifications | |
Brand |
AMT |
Catalog Number |
370C-97 |
Type |
Small Straight Centrifugal Pump |
Series |
Bronze Centrifugal Pumps |
HP |
3/4 |
PH |
3 |
Type |
TEFC |
Suction |
1" |
Discharge |
3/4" |
Frame |
56J |
VAC/60HZ |
230/460 |
Material |
Bronze |
Seal |
Viton |
Impeller |
Bronze |
Warranty |
1 Year |
Support Documents (pdf) |
