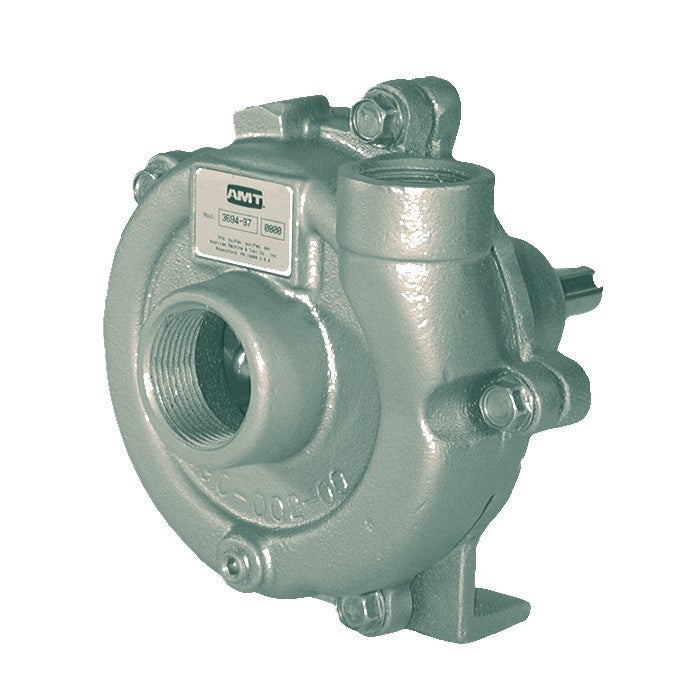

3694-98 AMT Stainless Steel Straight Centrifugal Pedestal Pump (2 HP Required, 1-1/4" Suction, 1" Discharge, Stainless Steel, Viton Shaft Seal)

3694-98 AMT Stainless Steel Straight Centrifugal Pedestal Pump (2 HP Required, 1-1/4" Suction, 1" Discharge, Stainless Steel, Viton Shaft Seal)

[COUNT] shoppers are looking at this right now

3694-98

$569.33 USD
$854.00 USD $569.33 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

AMT 3694-98, Pedestal Pump Sized for 2 HP,2 min. HP Req., Stainless Steel,Viton/SS,Stainless Steel IMPELLER, 1-1/4" NPT SUC, 1" NPT DIS
Applications
AMT Straight Centrifugal Pedestal pumps are designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. The high head models are ideal for sprinkler systems and pressure boosting
Features
Maximum Temperature:Buna-N: 180 F, Viton: 200 F
Self-cleaning Impeller on General Service Models
Epoxy Coated Pedestal Drive and Discharge Port Rotates in 90 Increments on High Head Models

Specifications

Brand
AMT
Catalog Number
3694-98
Type
Straight Centrifugal Pedestal Pumps
Series
General Service Models
TYPE & MINIMUM HP REQUIRED
Pedestal Pump Sized for 2 HP
Minimum HP Required
2
CASING
Stainless Steel
SHAFT SEAL
Viton/SS
IMPELLER
Stainless Steel
SHIP WT (Lbs.)
12
Curve
C
SUC
1-1/4" NPT
DIS
1" NPT
Minimum BHP Required @ 3450 RPM
1.95
Warranty
1 Year
Notes
See Support Documents
