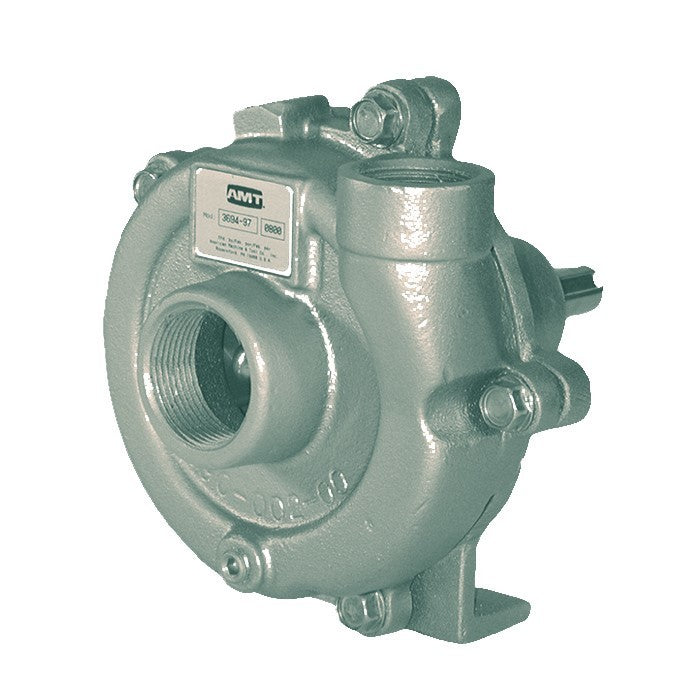

3682-98 AMT Stainless Steel Straight Centrifugal Pedestal Pump (1/2 HP Required, 1-1/4" Suction, 1" Discharge, Stainless Steel, Viton Shaft Seal)
3682-98 AMT Stainless Steel Straight Centrifugal Pedestal Pump (1/2 HP Required, 1-1/4" Suction, 1" Discharge, Stainless Steel, Viton Shaft Seal)
[COUNT] shoppers are looking at this right now
No reviews
SKU:3682-98
Precio habitual
$447.33 USD
Precio habitual
$671.00 USD
Precio de oferta
$447.33 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
AMT 3682-98, Pedestal Pump Sized for 1/2 HP,1/2 min. HP Req., Stainless Steel,Viton/SS,Stainless Steel IMPELLER, 1-1/4" NPT SUC, 1" NPT DIS
| Applications | |
| AMT Straight Centrifugal Pedestal pumps are designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. The high head models are ideal for sprinkler systems and pressure boosting | |
| Features | |
| Maximum Temperature:Buna-N: 180 F, Viton: 200 F | |
| Self-cleaning Impeller on General Service Models | |
| Epoxy Coated Pedestal Drive and Discharge Port Rotates in 90 Increments on High Head Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
3682-98 |
Type |
Straight Centrifugal Pedestal Pumps |
Series |
General Service Models |
TYPE & MINIMUM HP REQUIRED |
Pedestal Pump Sized for 1/2 HP |
Minimum HP Required |
1/2 |
CASING |
Stainless Steel |
SHAFT SEAL |
Viton/SS |
IMPELLER |
Stainless Steel |
SHIP WT (Lbs.) |
9 |
Curve |
C |
SUC |
1-1/4" NPT |
DIS |
1" NPT |
Minimum BHP Required @ 3450 RPM |
1.95 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
