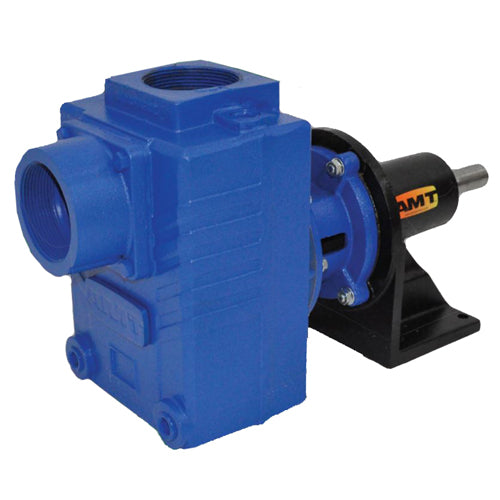

3391-99 AMT 3" Self-Priming Solids Handling Pedestal Drive Pump (7 HP, Buna-N Seal, 1/4" x 1-1/4" Key, 3" Suction and Discharge)

3391-99 AMT 3" Self-Priming Solids Handling Pedestal Drive Pump (7 HP, Buna-N Seal, 1/4" x 1-1/4" Key, 3" Suction and Discharge)

[COUNT] shoppers are looking at this right now

3391-99

$1,104.00 USD
$1,656.00 USD $1,104.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

AMT 3391-99, Self-Priming Solids Handling Pedestal Drive Pumps,3" Female,Buna-N Seal, 7 HP
Applications
AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron or thermoplastic construction material. The units feature 3/8" to 2" solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. The 3" & 4" trash pump models feature cleanout covers with quick release handles for removal of debris. All units are self-priming to 20 feet.
Features
Models 3391-99
Cast Iron Construction
2" NPT Suction & Discharge Ports
Maximum Temperature 180 F
Self-priming to 20 Ft.
3/4" Diameter Solids Handling Capability
Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings

Specifications

Brand
AMT
Catalog Number
3391-99
Type
Pedestal Drive Pumps
Series
Self-Priming Solids Handling Pedestal Drive Pumps
Curve
B
Construction
Cast Iron
SUC
3" Female
DIS
3" Female
L
21.6"
W
8.1"
H
12.0"
Keyway
1/4" x 1-1/4"
Solids Handling Capability
3/4" Diameter
Seal
Buna-N
HP Required @ 3600 RPM
7 HP
Ship Wt. (Lbs.)
54
Motor
NOT INCLUDED
Warranty
1 Year
Notes
See Support Documents
