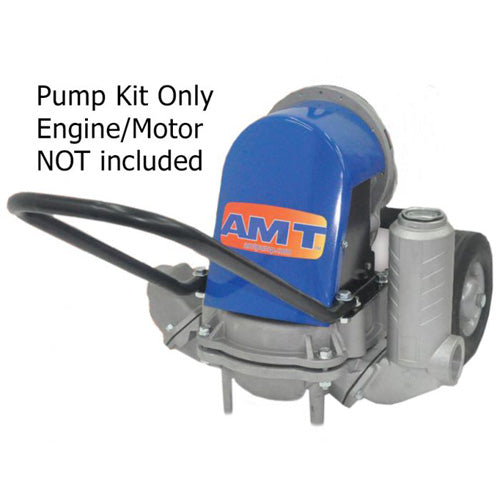

338G-K6 AMT 2" Self-Priming Diaphragm Pump Kit, Less Engine (4 HP, 2" Suction, 2" Discharge, .75 KYD Frame, Cast Aluminum, 1-1/4" Dia. Solids)

338G-K6 AMT 2" Self-Priming Diaphragm Pump Kit, Less Engine (4 HP, 2" Suction, 2" Discharge, .75 KYD Frame, Cast Aluminum, 1-1/4" Dia. Solids)

👁️ [COUNT] People are currently viewing this product.

338G-K6

$2,037.33 USD
$3,056.00 USD $2,037.33 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT Pumps 338G-K6, 2" Self-Priming Diaphragm Pump KIT - NO MOTOR , 4 HP, Kit, Less Motor ,
Applications
The AMT line of Diaphragm pumps features a 2-stage, heavy duty forged gear driven transmission. Often referred to as Mud or Sludge Pumps, diaphragm pumps are designed to pump mud, slurry, sewage and thick liquids that have the ability to flow. AMT Diaphragm pumps are available with a choice of drivers to meet your application requirements: gasoline, diesel or single or three phase electric motor. Built-in check valve assures self-priming to 20 feet after initial prime. Heavy duty forged gear driven transmission is designed to operate pump at 40 strokes per minute for electric motor models and 60 strokes per minute for engine driven models. Each unit includes a 2" or 3" NPT steel suction strainer, two NPT nipples and a wheel kit for portability. Models 337E-K6, 337H-K6, 338E-K6 and 338G-K6 are kits provided less motor or engine. Suction and discharge port sizes cannot be reduced.
Features
Sand Cast Aluminum Construction for Portability and Durability
Thermoplastic Santoprene Diaphragm
Self-Priming to 25 Ft. Lift
Solids Handling and Dirty Water Design
Modular Component Design Permits Easy Maintenance and Cleanout
90 Rotatable Base on All Models

Specifications

Brand
AMT Pumps
Catalog Number
338G-K6
Type
2" DIAPHRAGM PUMP KIT - NO ENGINE
HP
4
Frame
.75 Kyd
Drive Type
Kit, Less Engine
Materials
Cast Aluminum
Diaphragm
TPE
Ship WT (lbs)
95
Suction
2"
Discharge
2"
Max Solid Capacity
1-1/4" dia.
Max Temperature
180 F
Max GPM
50
Max Total Head
25 ft
Notes
See support documents
