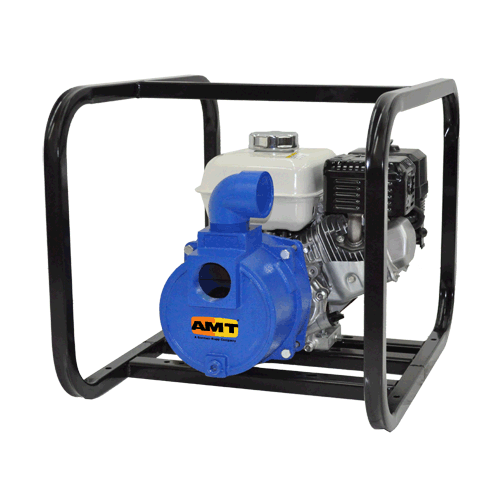

316F-Z5 AMT 2" Engine Driven Dredging Pump (5 HP, Hatz Diesel 1B30, 2"NPT Port, 2.7 Hr Run Time, 1.32 Gal Tank, 2"Suction and Discharge)
316F-Z5 AMT 2" Engine Driven Dredging Pump (5 HP, Hatz Diesel 1B30, 2"NPT Port, 2.7 Hr Run Time, 1.32 Gal Tank, 2"Suction and Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:316F-Z5
Precio habitual
$5,642.00 USD
Precio habitual
$8,463.00 USD
Precio de oferta
$5,642.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 316F-Z5, 2" Engine Driven Dredging Pump,2" NPT, Hatz Diesel 1B30,5 HP
| Applications |
| AMT Engine Driven Dredging Pump is designed for pumping sea water and fresh water containing up to 25% sand, debris and other abrasive particles. This unit can be used for other marine applications including dredging, pile driving, pier maintenance, emergency bilging and wash down. This pump is constructed of wear resistant high chromium stainless steel internal components that are designed to last for over 500 hours of service with regular maintenance of rinsing pump after each use. The high chromium stainless steel components are investment cast and CNC machined for maximum efficiency, performance and quality. Dual volute design reduces radial load on engine. The 4-bolt casing design and removable type volute offers simple maintenance and fast cleanout of the pump. |
| Features |
| High Chromium Stainless Steel Internal Components Resist Wear from Sea Water Mixed with Abrasive Sand |
| Silicon Carbide/Buna-N Mechanical Seal Resists Abrasives and Extends Seal Life |
| Heavy Duty Cast Iron Casing and Adapter Ensures Durability for Severe Service Conditions |
| O-ring Casing Seal for Ease of Service and Cleaning |
| Heavy Duty Steel Roll Frame for Portability |
| Maximum Temperature 180 F |
| Dual Volute Design for Hydraulic Balance |
| (2) NPT Pipe Nipples, (1) Discharge Elbow and (1) Suction Strainer Included |
Specifications | |
Brand |
AMT |
Catalog Number |
316F-Z5 |
Type |
Dredging Pump |
Series |
2" Engine Driven Dredging Pump |
Port |
2" NPT |
Driver |
Hatz Diesel 1B30 |
Seals |
Silicon Carbide Mechanical Seals with Buna-N Built In Check Valve & O-rings |
Oil Alert |
Not Included |
Run Time (Hours) |
2.7 |
Tank Size (Gal/Ltr.) |
1.32/5.0 |
Ship Wt. (Lbs.) |
110 |
HP |
5 HP |
Suction (inch.) |
2" |
Discharge (inch.) |
2" |
L |
31" |
W |
22.5" |
H |
23.6" |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
