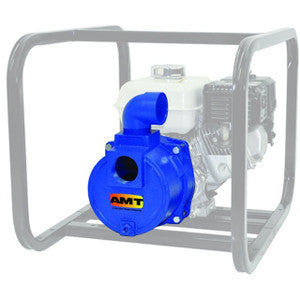

316F-99 AMT 2" Engine Driven Dredging Pedestal Pump (Pump Only - Motor not included, 2"NPT Port, Pedestal Ball Bearing w/ 3/4" key shaft)

316F-99 AMT 2" Engine Driven Dredging Pedestal Pump (Pump Only - Motor not included, 2"NPT Port, Pedestal Ball Bearing w/ 3/4" key shaft)

👁️ [COUNT] People are currently viewing this product.

316F-99

$1,041.33 USD
$1,562.00 USD $1,041.33 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 316F-99, 2" Engine Driven Dredging Pump,2" NPT,Pedestal Ball Bearing w/ 3/4" Keyed Shaft
Applications
AMT Engine Driven Dredging Pump is designed for pumping sea water and fresh water containing up to 25% sand, debris and other abrasive particles. This unit can be used for other marine applications including dredging, pile driving, pier maintenance, emergency bilging and wash down. This pump is constructed of wear resistant high chromium stainless steel internal components that are designed to last for over 500 hours of service with regular maintenance of rinsing pump after each use. The high chromium stainless steel components are investment cast and CNC machined for maximum efficiency, performance and quality. Dual volute design reduces radial load on engine. The 4-bolt casing design and removable type volute offers simple maintenance and fast cleanout of the pump.
Features
High Chromium Stainless Steel Internal Components Resist Wear from Sea Water Mixed with Abrasive Sand
Silicon Carbide/Buna-N Mechanical Seal Resists Abrasives and Extends Seal Life
Heavy Duty Cast Iron Casing and Adapter Ensures Durability for Severe Service Conditions
O-ring Casing Seal for Ease of Service and Cleaning
Maximum Temperature 180 F
Heavy Duty Steel Roll Frame for Portability
Dual Volute Design for Hydraulic Balance
(2) NPT Pipe Nipples, (1) Discharge Elbow and (1) Suction Strainer Included

Specifications

Brand
AMT
Catalog Number
316F-99
Type
Dredging Pump
Series
2" Engine Driven Dredging Pump
Port
2" NPT
Driver
Pedestal Ball Bearing w/ 3/4" Keyed Shaft
Seals
Silicon Carbide Mechanical Seals with Buna-N Built In Check Valve & O-rings
Oil Alert
Not Included
Ship Wt. (Lbs.)
50
Suction (inch.)
2
Discharge (inch.)
2
Motor
 NOT INCLUDED
L
15.1"
W
8.0"
H
8.9"
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
