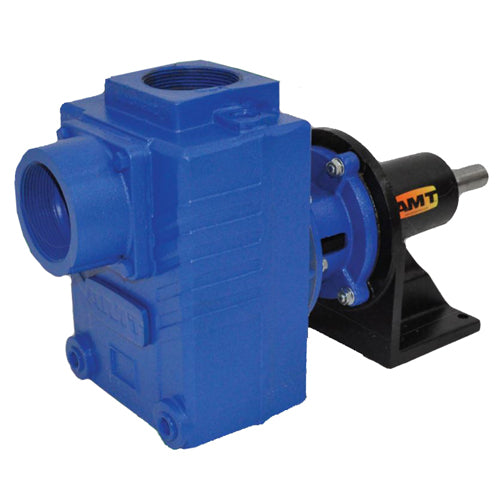

AMT Pumps 3160-99, 2" Self-Priming Solids Handling Pedestal Drive Pump (3 HP, Buna-N Seal, 2" Suction and Discharge, 3/16" x 1-3/8" Keyway)
AMT Pumps 3160-99, 2" Self-Priming Solids Handling Pedestal Drive Pump (3 HP, Buna-N Seal, 2" Suction and Discharge, 3/16" x 1-3/8" Keyway)
SKU:3160-99
Precio habitual
$433.77 USD
Precio habitual
$668.00 USD
Precio de oferta
$433.77 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
AMT 3160-99, Self-Priming Solids Handling Pedestal Drive Pumps,2" Female,Buna-N Seal, 3 HP
| Applications |
| AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron or thermoplastic construction material. The units feature 3/8" to 2" solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. The 3" & 4" trash pump models feature cleanout covers with quick release handles for removal of debris. All units are self-priming to 20 feet. |
| Features |
| Models 3160-99 |
| Buna-N Check Valve and O-rings |
| Maximum Temperature 180 F |
| Self-priming to 20 Ft. |
| Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings |
Specifications | |
Brand |
AMT |
Catalog Number |
3160-99 |
Type |
Pedestal Drive Pumps |
Construction |
Cast Iron |
Series |
Self-Priming Solids Handling Pedestal Drive Pumps |
Curve |
F |
Max Working Pressure |
75 PSI |
SUC |
2" Female |
DIS |
2" Female |
L |
15.1" |
W |
8.0" |
H |
8.9" |
Keyway |
3/16" x 1-3/8" |
Solids |
3/8" Diameter Solids Handling Capability |
CNC Machined Shaft |
3/4" Diameter |
Seal |
Buna-N |
Required HP @ 3600 RPM |
3 |
Motor |
NOT INCLUDED |
Ship Wt. (Lbs.) |
41 |
Warranty |
1 Year |
Notes |
See Support Documents |
