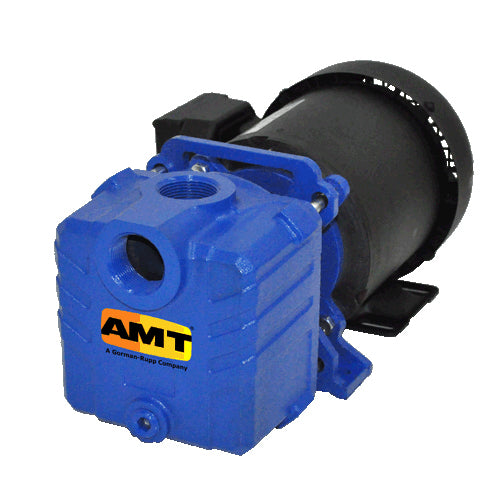

AMT Pumps 285E-95, 1" Self-Priming Centrifugal Pump (1/2 HP, 115/230V, TEFC, 1 Phase, 1" NPT Suction and Discharge)
AMT Pumps 285E-95, 1" Self-Priming Centrifugal Pump (1/2 HP, 115/230V, TEFC, 1 Phase, 1" NPT Suction and Discharge)
SKU:285E-999-95
Precio habitual
$466.46 USD
Precio habitual
$765.00 USD
Precio de oferta
$466.46 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
AMT 285E-95, 1/2 HP, 1 PH, TEFC , 115/230 V, 1" NPT , 1" NPT Discharge
| Applications | |
| The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will self prime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC (on center). Built-in carrying handle offers portability. | |
|
Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; CALL FOR QUOTATION & LEAD TIME! |
|
| Features | |
| Cast Iron Construction | |
| Buna-N Mechanical Seal and O-Ring with optional Viton? or Silicon Carbide Mechanical Seal and O-ring | |
| 1" & 1-1/4" NPT Suction and Discharge Ports | |
| Dual Volute Design Reduces Radial Load on Motor | |
| Maximum Working Pressure 75 PSI | |
| Maximum Temperature 180 F | |
| Single or Three Phase, ODP or TEFC Motors Available | |
| Self-cleaning, Semi-open Impeller | |
| QSP - Quick Ship Pump for Many Models | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
285E-95
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
1" & 1-1/4" Self-Priming Cast Iron Centrifugal Pumps
|
|
Curve
|
A
|
|
HP
|
1/2
|
|
PH
|
1
|
|
ENC
|
TEFC
|
|
Voltage @ 60 Hz +
|
115/230
|
|
Full Load Amps
|
9/5
|
|
Suction
|
1" NPT
|
|
Discharge
|
1" NPT
|
|
L
|
17.3"
|
|
W
|
8.8"
|
|
H
|
7.2"
|
|
Ship Wt. (Lbs.)
|
42
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
