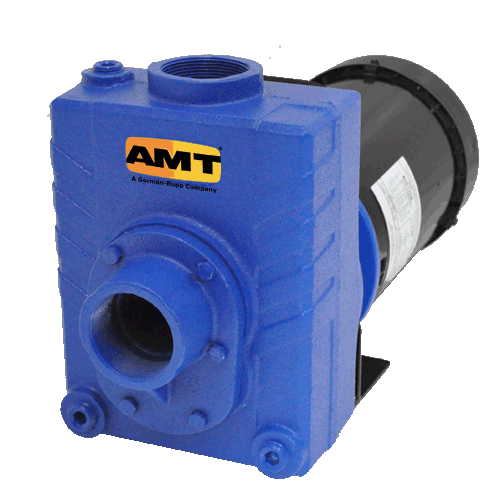

276A-95 AMT 2" Cast Iron Self-Priming Centrifugal Pump (3 HP, 230V, 1 Phase, 2"Suction and Discharge)
276A-95 AMT 2" Cast Iron Self-Priming Centrifugal Pump (3 HP, 230V, 1 Phase, 2"Suction and Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:276A-95
Precio habitual
$1,075.00 USD
Precio habitual
$1,431.00 USD
Precio de oferta
$1,075.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
AMT 276A-95, Self-Priming Centrifugal Pumps,3 HP, TEFC, 230 V, 1 Phase.
| Applications | |
| This line of AMT Self-Priming Centrifugal pumps is designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and processing. These pumps feature a self-cleaning clog resistant impeller capable of handling up to 3/8" diameter semisolids. Built-in flapper/check valve enables consistent self-priming to 20 feet. Dual volute design reduces radial load on motor. Stainless steel models are especially effective in applications where rust and/or corrosion can develop in systems and also are highly resistant to erosion and chemicals. | |
| Features | |
| Handles 3/8" Diameter Semi-solids | |
| NEMA 56J Motors with Stainless Steel Shaft | |
| Self-primes to 20 Ft. | |
| Self-cleaning, Clog Resistant Impeller | |
| Steel Base and Handle Included | |
| Dual Volute Design | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
276A-95
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
Self-Priming Centrifugal Pumps
|
|
Construction
|
Cast Iron with Buna-N Seals
|
|
HP
|
3
|
|
TYPE
|
TEFC
|
|
FRAME
|
56J
|
|
VAC/60 Hz
|
230
|
|
PHASE
|
1
|
|
Inlet
|
2"
|
|
Outlet
|
2"
|
|
SHIP WT (Lbs.)
|
88
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
