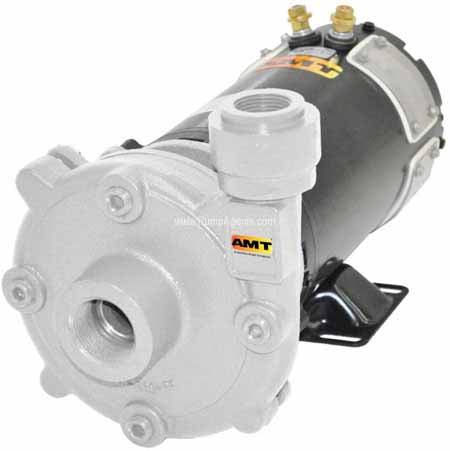

AMT Pumps 12DC-98, 12 Volt DC Washdown Pump (7/8 HP, 12 VDC, 1-1/4" Suction, 1" Discharge, 3500 RPM, 56 GPM, 35 PSI))

AMT 12DC-98, STRAIGHT CENTRIFUGAL ELECTRIC DRIVEN PUMPS , 7/8 HP, 1-1/4x1 IN/OUT, 12 VDC , Stainless Steel CASING, Viton SHAFT SEAL,

Applications
AMT 12 Volt DC Washdown pumps are designed for OEM, chemical processing septic service, pumper and marine applications requiring a DC motor. The motor has a one hour duty rating and is furnished with a stainless steel shaft. This washdown duty pump is available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy servicing without disturbing any piping. Stainless Steel impeller maximizes performance. PUMPS ARE NOT SELF PRIMING AND REQUIRE FLOODED SUCTION. Premium 12 Volt DC washdown duty motors are built to handle washdown and damp/wet environments. The motor features epoxy paint, condensate drains, interior coating to protect against moisture or corrosion, special shaft seals to retard water, 12 Volt DC stud connections with o-ring seals, oversized brushes assuring longer brush life and base mount. UNITS ARE NOT SUBMERSIBLE IN LIQUIDS.
Features
300 Series Investment Cast Stainless Steel and Cast Iron with Stainless Steel Impeller Construction
Discharge Port Rotates in 90 Degree Increments
(4) Front Drain Plugs
7/8 HP 12 Volt DC Premium Washdown Duty Motor for Severe and Damp/Wet Operating Conditions
Model 12DC-98 Superceded model 489G-98

Specifications
Brand	AMT
Catalog Number	12DC-98
Type	12 VOLT DC HIGH HEAD WASHDOWN PUMPS
Series	STRAIGHT CENTRIFUGAL ELECTRIC DRIVEN PUMPS
HP	7/8
IN/OUT	1-1/4x1
VAC/60 Hz	12 VDC
CASING	Stainless Steel
SHAFT SEAL	Viton
IMPELLER	Stainless Steel
SHIP WT	57
OPTIONAL MOUNTING BASE	A201-90
LENGTH	15.5"
WIDTH	7.9"
HEIGHT	8.5"
MAX SOLIDS	3/16" Diameter
MAX FLOW	56 GPM
MAX HEAD	80 FT.
MAX PSI	35
SUCTION	1-1/4"
DISCHARGE	1"
RPM	3500
Old Model #	489G-98
WARRANTY	1 Year
NOTES	See Support Documents
