U.S. Motors

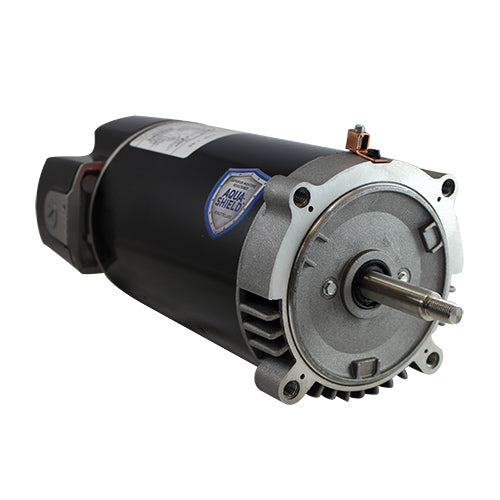

ACT125 US Motor AQUA-SHIELD EZ48 Pool & Spa Motor (1.25 HP, ODP, 3450 RPM, 60 Hz, 230V, 56 Frame, C-Face)

Name: ACT125 US Motor AQUA-SHIELD EZ48 Pool & Spa Motor (1.25 HP, ODP, 3450 RPM, 60 Hz, 230V, 56 Frame, C-Face)
Brand: U.S. Motors
SKU: ACT125
Price: 265.62 USD
Availability: InStock

SKU:ACT125

$265.62 USD

~~$321.00 USD~~ $265.62 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

ACT125 US Motor AQUA-SHIELD EZ48 Pool & Spa Motor (1.25 HP, ODP, 3450 RPM, 60 Hz, 230V, 56 Frame, C-Face)

CAT #
ACT125
Model_Number

T055CRU1612013J

PRODUCT NAME

1.25 HP - ODP - 3450

PHASE TYPE

1_CAPACITOR START -

MOTOR ENCLOSURE

ODP

HORSEPOWER

1.25

POLES

NUMBER SPEEDS

RPM

3450

HERTZ

VOLTS PRIMARY

230/115 V

VOLTS

230

VOLTS 2

115

FRME

SHAFT CODE

STATOR DIAMETER

5.5

STACK

2.75

MOUNTING

C-FACE

MOTOR TYPE

FHP

OPPOSITE END BEARING

6203

SHAFT END BEARING

6203

AMBIENT

ROTATION

CCW DRIVE END

RUNCAPMFD

RUNCAPVOLTS

370

STARTCAPMFD

374

SHIPPING WEIGHT

THERMAL PROTECTION

AUTOMATIC RESET

BREAKDOWN TORQUE

68.99

BREAKDOWN TORQUE UOM

OZFT

LOCKED ROTOR TORQUE

74.95

LOCKED ROTOR TORQUE UOM

OZFT

INSULATION CLASS

KVA CODE LETTER

LOCKED ROTOR AMPS

44.82

Questions about this product? Contact our team!
Product images may be generic.
