U.S. Motors

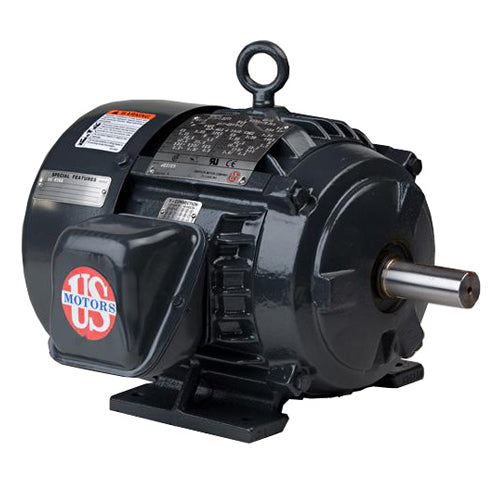

A50P2C US Motor Definite Purpose Automotive Duty U Frame Motor (Model # GD79, 50 HP, 4 Pole, 1785 RPM, 460 Volt, 365 Frame, HORZ-Footed, Dual Rotation, 460 Volt, 60 Hz)

A50P2C US Motor Definite Purpose Automotive Duty U Frame Motor (Model # GD79, 50 HP, 4 Pole, 1785 RPM, 460 Volt, 365 Frame, HORZ-Footed, Dual Rotation, 460 Volt, 60 Hz)

👁️ [COUNT] People are currently viewing this product.

A50P2C

$11,470.57 USD
$10,992.00 USD $11,470.57 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

A50P2C US Motor Definite Purpose Automotive Duty U Frame Motor (Model # GD79, 50 HP, 4 Pole, 1785 RPM, 460 Volt, 365 Frame, HORZ-Footed, Dual Rotation, 460 Volt, 60 Hz)

Model_Number
GD79
PRODUCT NAME
MODEL NUMBER
PHASETYPE
3
MOTOR ENCLOSURE
TEFC
HORSEPOWER
50 HP
KILOWATTS
37.3
POLES
4
NUMBER SPEEDS
1
RPM
1785 RPM
HERTZ
60
VOLTS PRIMARY
460 V
VOLTS
460
FRME
365
SHAFT CODE
U
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
JDE
OPPOSITE END BEARING
65BC02JPP3
SHAFT END BEARING
65BC03JPP3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
670
BREAKDOWN TORQUE
230
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
199
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
379.1
NEMA NOMINAL EFFICIENCY
94.5
FULL LOAD AMPS PRIMARY
57
SERVICE FACTOR AMPS PRIMARY
65
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
Ver todos los detalles
