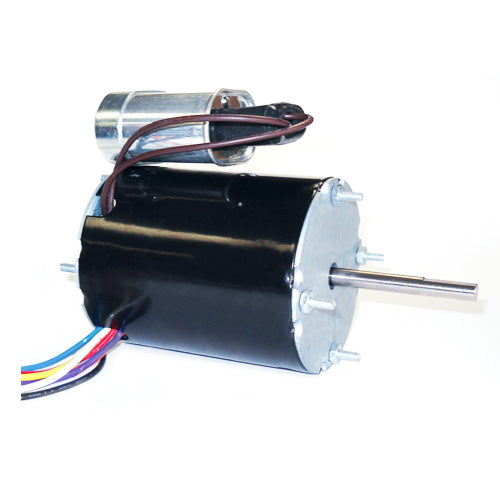

9624 Nidec U.S. Motors Direct Drive Fan Motor (1/50 HP, 1 Phase, 115 Volts, 1550 RPM, 4 Pole, Permanent Split Capacitor, TEAO Enclosure, 12" Leads)
9624 Nidec U.S. Motors Direct Drive Fan Motor (1/50 HP, 1 Phase, 115 Volts, 1550 RPM, 4 Pole, Permanent Split Capacitor, TEAO Enclosure, 12" Leads)
[COUNT] shoppers are looking at this right now
No reviews
SKU:9624
Precio habitual
$71.29 USD
Precio habitual
$86.00 USD
Precio de oferta
$71.29 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson 9624, HP: 1/50, RPM: 1550, Volts: 115, Shaft Rotation: Rev, Enclosure: OAO, Diameter: 3.3", OEM Direct Replacement.
| Applications | |
| Designed to meet manufacturer's requirements for fans & blowers. | |
| Features | |
| Four 8-32 x 3/4 Stud Extensions At Each End | 12 Leads |
| Ball Bearings Have All Angle Thrust System | Automatic Reset Thermal Overload Protector |
|
Tech Specs |
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
9624
|
|
HP
|
1/50
|
|
RPM
|
1550
|
|
Volts
|
115
|
|
Amps
|
0.7
|
|
Shaft Rotation
|
Rev
|
|
Shell XI
|
2.46
|
|
Shaft Dia. X N
|
.25 x 2.50
|
|
Apx. Wt. (lb)
|
3
|
|
Enclosure
|
OAO
|
|
Diameter
|
3.3"
|
|
OEM Direct Replacement
|
-
|
|
Type
|
Shaded Pole & PSC Direct Drive Fan Motor
|
