U.S. Motors

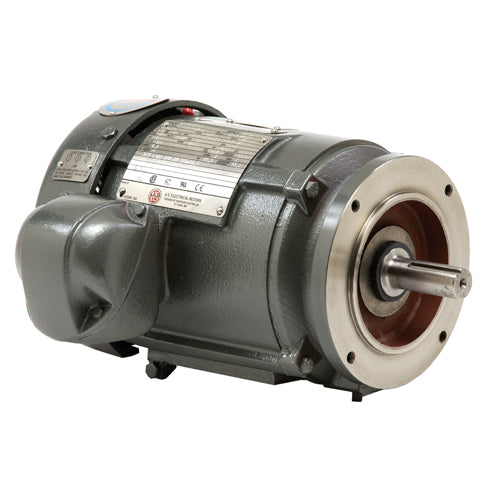

8P7P2CCR U.S. Motors General Purpose NEMA Proficient Motor (7-1/2 HP, 1800 RPM, 460 Volts, Three Phase, TEFC Enclosure)

8P7P2CCR U.S. Motors General Purpose NEMA Proficient Motor (7-1/2 HP, 1800 RPM, 460 Volts, Three Phase, TEFC Enclosure)

8P7P2CCR

$1,370.20 USD
$1,370.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors 8P7P2CCR, General Purpose Motor Type, 7-1/2 HP, 1800 RPM, 460 Volts, Three Phase, TEFC Enclosure,
Applications
For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.
Features
Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
All Cast Iron Construction
Corrosion Resistant Mill & Chem Duty Paint (250 Hour Salt Spray Test)
Same Size Regreasable Open Bearings & Internal Bearing Caps (180 Frame & Up)
Cast Iron Inner Bearing Caps (180 Frame & Larger)
External Grounding Provision, Epoxy Coated Rotor
1.15 SF On Sine Wave / 1.0 SF On Inverter Power
Meets or Exceeds IEEE 841 Standard 2009
20:1 Variable Torque; 5:1 Constant Torque On Inverter Power

Specifications

Brand
U.S. Motors
Catalog Number
8P7P2CCR
Type
General Purpose Motor
Series
841 Plus Motor
HP
7-1/2
RPM
1800
Volts
460
Phase
Three
Enclosure
TEFC
Frame
213TC
SF
1.15
"C" Dimension (inches)
20.8
Weight (lbs)
160
NEMA Nom. Eff.
91
Full Load Amps
9.2
Construction
Cast Iron
Warranty
5 Year Warranty (3 Years on Inverter Power)
