U.S. Motors

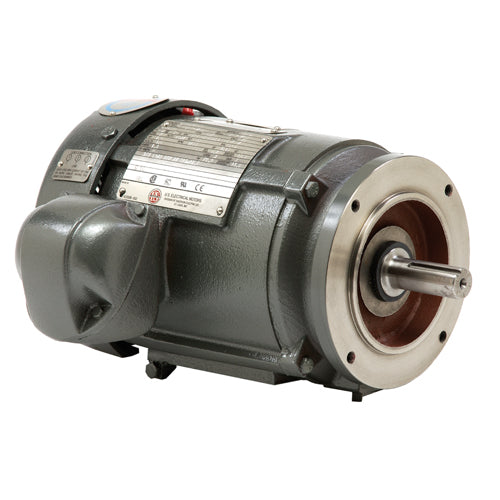

8P32P1CCR U.S. Motors General Purpose NEMA Proficient Motor (1-1/2 HP, 3600 RPM, 460 Volts, Three Phase, TEFC Enclosure)

8P32P1CCR U.S. Motors General Purpose NEMA Proficient Motor (1-1/2 HP, 3600 RPM, 460 Volts, Three Phase, TEFC Enclosure)

[COUNT] shoppers are looking at this right now

8P32P1CCR

$784.60 USD
$0.00 USD $784.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

U.S. Motors 8P32P1CCR, General Purpose Motor Type, 1-1/2 HP, 3600 RPM, 460 Volts, Three Phase, TEFC Enclosure,
Applications
For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.
Features
Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
All Cast Iron Construction
Corrosion Resistant Mill & Chem Duty Paint (250 Hour Salt Spray Test)
Same Size Regreasable Open Bearings & Internal Bearing Caps (180 Frame & Up)
Cast Iron Inner Bearing Caps (180 Frame & Larger)
External Grounding Provision, Epoxy Coated Rotor
1.15 SF On Sine Wave / 1.0 SF On Inverter Power
Meets or Exceeds IEEE 841 Standard 2009
20:1 Variable Torque; 5:1 Constant Torque On Inverter Power

Specifications

Brand
U.S. Motors
Catalog Number
8P32P1CCR
Type
General Purpose Motor
Series
841 Plus Motor
HP
1-1/2
RPM
3600
Volts
460
Phase
Three
Enclosure
TEFC
Frame
143TC
SF
1.15
"C" Dimension (inches)
13.5
Weight (lbs)
68
NEMA Nom. Eff.
84
Full Load Amps
1.9
Construction
Cast Iron
Warranty
5 Year Warranty (3 Years on Inverter Power)

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
Ver todos los detalles
