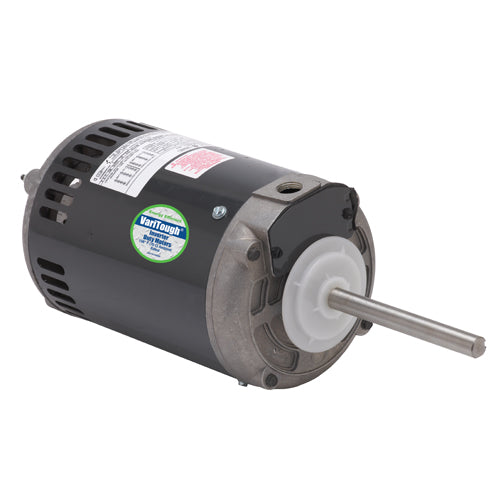

8987VG US Motor Commercial Condenser Fan Motor (2HP, 1140 RPM, 3PH, 208V, 230V/460V, 56YZ Frame)
8987VG US Motor Commercial Condenser Fan Motor (2HP, 1140 RPM, 3PH, 208V, 230V/460V, 56YZ Frame)
SKU:8987VG
Precio habitual
$503.53 USD
Precio habitual
$752.00 USD
Precio de oferta
$503.53 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
8987VG US Motor Commercial Condenser Fan Motor (2HP, 1140 RPM, 3PH, 208V, 230V/460V, 56YZ Frame)
VariTough® Three Phase Inverter Duty
Commercial Condenser Fan
6.3" Dia. Open Dripproof Shaft Up
70°C Max Ambient Belly Band Mount
AEGIS® Shaft Grounding Ring included and mounted
| Model_Number: | J063BKB0251015B |
| PRODUCT NAME: | 2 HP - OAO - 1140 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | OAO |
| HORSEPOWER: | 2 |
| KILOWATTS: | 1.5 |
| POLES: | 6 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1140 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/460 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| VOLTS 3: | 460 |
| FRME : | 56 |
| SHAFT CODE: | YZ |
| STATOR DIAMETER: | 6.3 |
| STACK: | 4.5 |
| MOUNTING: | BAND |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 70 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1 |
| SHIPPING WEIGHT: | 48 |
| THERMAL PROTECTION: | T-STAT |
| BREAKDOWN TORQUE: | 498.6 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 323.5 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 32.62 |
| NEMA NOMINAL EFFICIENCY: | 85.5 |
| FULL LOAD AMPS PRIMARY: | 7.8-7.8/3.9 |
