U.S. Motors

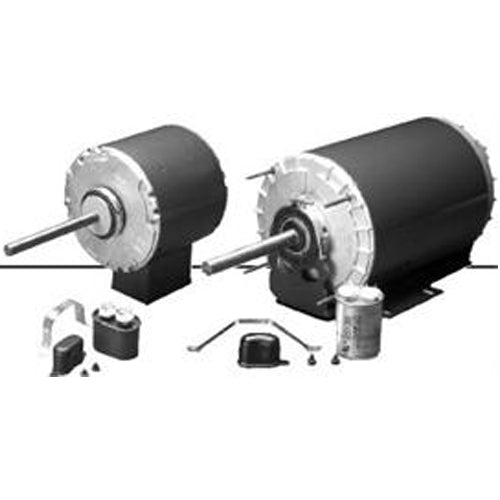

8868 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1/2 HP, 208-230 Volts, 1075 RPM)
8868 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1/2 HP, 208-230 Volts, 1075 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:8868
Precio habitual
$328.24 USD
Precio habitual
$0.00 USD
Precio de oferta
$328.24 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
US Motors Emerson 8868, HP: 1/2, RPM: 1075, Volts: 208-230, Shaft N: 3, Shell XI: 6.3, Total C: 9.3, Diameter: 5.6" Diameter, For use on condenser cooling fans
| Applications | |
| For use on condenser cooling fans in commercial air conditioning applications. | |
| Features | |
| Capacitor and Outlet Box Included, unless noted | 40C Ambient |
| Reversible Rotation | Dual Voltage |
| Double-Sealed Ball Bearings | Class B Insulation |
| Continuous Duty, Air Over | Automatic Reset Thermal Overload Protector |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
8868 |
HP |
1/2 |
RPM |
1075 |
Volts |
208-230 |
Bearings |
Ball |
Amps |
3.8 |
Cap. MFD |
10 |
Shaft N |
3 |
Apx. Wt. (lb) |
21 |
Shell XI |
6.3 |
Total C |
9.3 |
Diameter |
5.6" Diameter |
Stud YM |
0.63 |
Mount |
All Angle Mounting, Hub Ring Mount (2 1/4") |
Type |
Permanent Split Capacitor Commercial Condenser Fan Motor |
OEM Replacement |
- |
Support Documents (pdf) | ||||
| Product Literature | ||||
