U.S. Motors

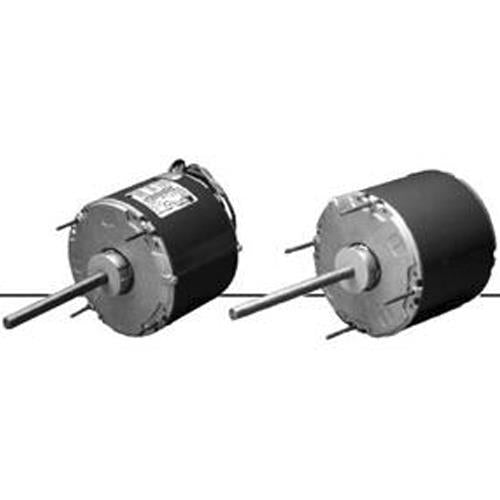

8666 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/4 HP, 230 Volts, 825 RPM)

8666 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/4 HP, 230 Volts, 825 RPM)

8666

$205.10 USD
$205.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson 8666, HP: 1/4, RPM: 825, Volts: 230, Diameter: 5.6", Enclosure: Open Dripproof, Air Over, For Cooling Fans

Applications
Designed to meet manufacturer's requirements for condenser cooling fans.
Features
High Efficiency Economizer Rated (except as noted) Green Ground Lead
60 Hz Reversible Rotation
Capacitor Mounting Holes in Frame Band Class B Insulation
Continuous Duty, Air Over 30" Leads
Water Slinger Double Flats on Shaft
Designed for use with 370V Capacitors Enclosed Endshield at Shaft End
Automatic Reset Thermal Overload Protector Sleeve Bearings have All Angle Thrust System

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
8666
HP
1/4
RPM
825
Volts
230
Bearings
Slv
Amps
1.9
Cap. MFD
5
Shaft N
6
Apx. Wt. (lb)
14
Shell XI
4.6
Total C
11.6
Diameter
5.6"
Enclosure
Open Dripproof, Air Over
Mount
Stud - Shaft Up or Horizontal
Notes
Without Capacitor
Type
Permanent Split Capacitor Condenser Fan Motor
OEM Replacement
-
