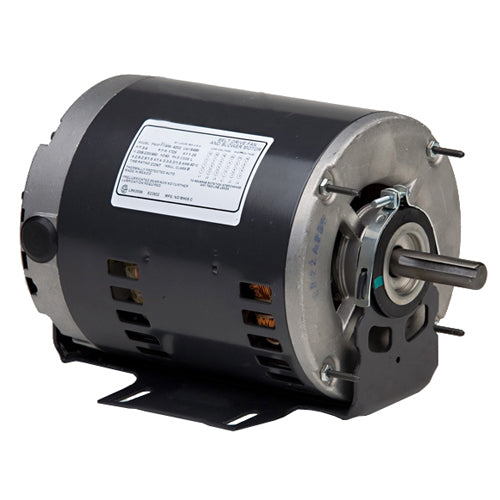

8490P US Motors Commercial Belted Fan & Blower (ODP, 1-1/2 HP, 1 SPD, 4P, 1725 RPM)

8490P US Motors Commercial Belted Fan & Blower (ODP, 1-1/2 HP, 1 SPD, 4P, 1725 RPM)

[COUNT] shoppers are looking at this right now

8490P

$774.81 USD
$0.00 USD $774.81 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

8490P US Motors Commercial Belted Fan & Blower Motor (ODP, 1-1/2 HP, 1 SPD, 4 P, 1725 RPM)

Model_Number
P063AHZ1338015B
PRODUCT NAME
1.5 HP - ODP - 1725
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
1.5
KILOWATTS
1.1
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
230/460 V
VOLTS
230
VOLTS 2
460
VOLTS 3
460
FRME
56
SHAFT CODE
H
STATOR DIAMETER
6.3
STACK
3
MOUNTING
RESILIENT BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
REVERSIBLE
SERVICE FACTOR
1.15
SHIPPING WEIGHT
40
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
402.2
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
270.4
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
N
LOCKED ROTOR AMPS
38.6
NEMA NOMINAL EFFICIENCY
86.5
FULL LOAD AMPS PRIMARY
4.8-4.8/2.4
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
Ver todos los detalles
