7MPB75-02 Myers High Pressure Booster Pumps (3/4 HP, 1 Phase, 115/230 Voltage, 7 GPM, MPB Series)

7MPB75-02 Myers High Pressure Booster Pumps (3/4 HP, 1 Phase, 115/230 Voltage, 7 GPM, MPB Series)

7MPB75-02

$1,474.21 USD
$1,474.21 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

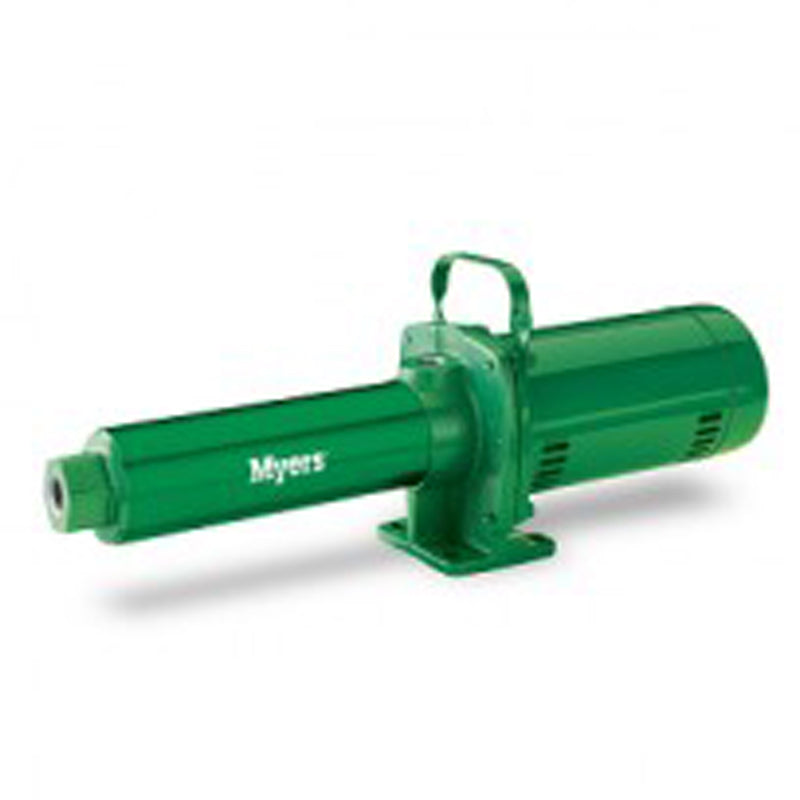

Myers 7MPB75, High Pressure Booster Pump Type, MPB Series, 3/4 HP, 1 Phase, 115/230 Voltage, 7 GPM,

Applications
Car wash, filtration and reverse osmosis, residential, commercial or agricultural pressure washing, booster and spray systems, HVAC, general purpose pumping.
Features
The MPB Booster Pumps are the most durable booster pump available. The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation withoutdamage to motor bearings, mechanical seal or pump hydraulic components.
True back pull-out design allows impeller and bearing frame to be backed out of volute without disturbing plumbing or mounting fixture, saving time needed for preventive maintenance
Precision fit impellers are designed to maximize hydraulic pressure and water delivery at each stage
Staging system uses ceramic wear surface for superior wear and heat resistance that's tougher than steel
Compact, lightweight design grabs first place for faster installation and improved economy
Versatile mounting base is specially designed to be an easy fit on a wider variety of challenging applications
BODY CONSTRUCTION: 304 Grade Stainless Steel
MAX LIFT: 15 feet
MAXIMUM TOTAL PRESSURE: Pump Pressure + Inlet Pressure Not To Exceed 315 PSI
AMP DRAW (at full load): max of 26 Amps (2 HP running on 115v)

Specifications

Brand
Myers
Catalog Number
7MPB75
Type
High Pressure Booster Pump
Series
MPB
HP
3/4
Phase
1
Voltage
115/230
Stages
12
Inlet
3/4
Outlet
3/4
GPM
7
Max. Inlet Pressure
80 PSI
Max. Working Pressure
315 PSI
Shell
300 series stainless steel
Motor Enclosure
ODP
Notes
See Support Documents

Support Documents (pdf)
