• 7HS10412C Goulds Pumps 4" Submersible Pump and Motor Package (1 HP, 17 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)
1 1

Goulds Pumps

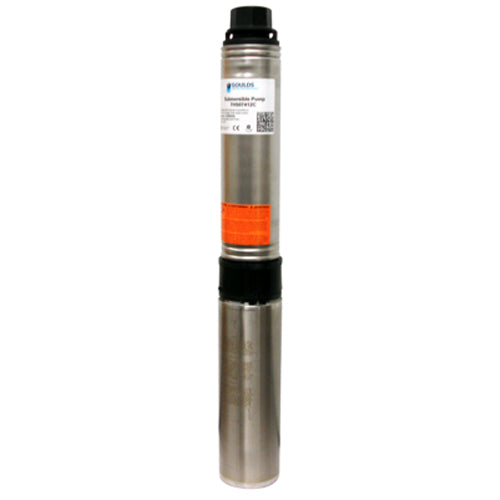

7HS10412C Goulds Pumps 4" Submersible Pump and Motor Package (1 HP, 17 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)

7HS10412C Goulds Pumps 4" Submersible Pump and Motor Package (1 HP, 17 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)

7HS10412C

$1,066.89 USD
$1,749.00 USD $1,066.89 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds Pumps 7HS10412C, 4" Submersible Well Pumps with Motor and Control Box , 1 HP, 17 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge,

Applications
The Goulds HS series 4? submersible pump features top quality materials and construction to provide reliable and efficient service. This pump is powered by a CentriPro 4? motor for dependable operation and long service life.
Features
Powered by CentriPro 4" motors for dependable operation and long service life.
Built in Check Valve screws into discharge head from the top, easily removed for drain-back systems or replacement without disassembling the pump. Spring loaded, o-ring poppet design for positive seal in all conditions.
Nylon motor adapter for strength and corrosion resistance.
Stainless steel hex design shafts, shaft couplings, casings and stage bowls inhibit corrosion.
Noryl engineered composite impellers for abrasion resistance and durability.
Lexan engineered composite diffusers are abrasion resistant.
All engineered composite components are non-toxic, non-leaching, FDA compliant materials.
Goulds Water Technology field proven floating impeller stack design for superior sand and abrasive handling and durability.
Quad Lock Technology: 4 Roll Formed grooves provide durability and strength, tested to exceed strength of poly and PVC pipes.
Complete pump/motor assemblies are CSA listed, CSA/CUS approved motors are available in 2-wire and 3-wire single phase designs.
Maximum Allowable Pressure - 300 PSI

Specifications

Brand
Goulds Pumps
Catalog Number
7HS10412C
Type
4" Submersible Well Pumps with Motor and Control Box
Series
HS Series
Model Number
7HS10412C
HP
1
Stages
17
Volts
230
Wire
3
Phase
1
Discharge
1-1/4"
Hz
60
GPM (Best Efficiency)
7
Motor
4"
Centripro Motor (included)
M10412
Control Box (Included with 3-wire models)
CB10412
Optional wrap around suction strainer
7K3356
Additional Specs
See Support Documents

Support Documents (pdf)
