Berkeley Pumps

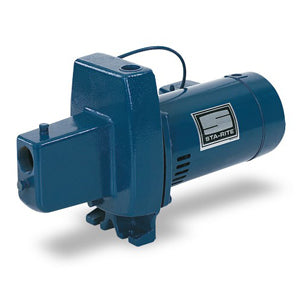

7FN-L Berkeley Self-priming shallow well jet pump (3/4 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, cast iron Body)

7FN-L Berkeley Self-priming shallow well jet pump (3/4 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, cast iron Body)

[COUNT] shoppers are looking at this right now

7FN-L

$684.45 USD
$1,334.00 USD $684.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

View price in cart
Berkeley 7FN-L, self-priming shallow well jet pumps Type, FN Series, 3/4 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, Close-grained cast iron Body,
Applications
The FN Series provides strong performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water. Applications include: Water systems and sprinkling for homes, farms and cottages.
Features
Quality Construction: Close-grained cast iron body and base, specially treated for corrosion resistance. Drain port provided for easy winterizing.
Built-in Jet: High-strength polycarbonate nozzle and venturi for maximum resistance to corrosion and abrasion. Cleanout plug provided for ease of service.
Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency.
Precision-Molded Diffuser: Pump primes faster, handles more air, with multiport, precision-molded, reinforced polypropylene diffuser.
Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassure prolonged motor life.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced.
Heavy-Duty Ball Bearings: Sealed, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.
Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy; ventilating air cannot contaminate vital switching components.
Pressure Switch: Adjustable cut-in and fixed differential (20 PSI).

Specifications

Brand
Berkeley
Catalog Number
7FN-L
Type
self-priming shallow well jet pumps
Series
FN
HP
3/4
Switch Setting
30-50
Suction
1-1/4"
Discharge
1"
Voltage
115/230
Max. Inlet Pressure
50 PSI
Body
Close-grained cast iron
Shaft
One-piece threaded stainless steel
Diffuser
Reinforced polypropylene
Impeller
Noryl
Venturi
Polycarbonate

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
