U.S. Motors

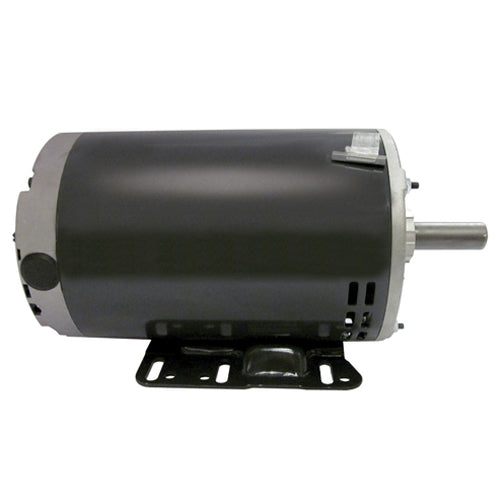

7915VP US Motor (3 HP - ODP - 1725 RPM)
7915VP US Motor (3 HP - ODP - 1725 RPM)
No reviews
SKU:7915VP
Precio habitual
$649.19 USD
Precio habitual
Precio de oferta
$649.19 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
7915VP US Motor (3 HP - ODP - 1725 RPM)
| Model_Number: | P063AHE1318015B |
| Cat # | 7915VP |
| PRODUCT NAME: | 3 HP - ODP - 1725 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 3 |
| KILOWATTS: | 2.2 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 200-230/460 V |
| VOLTS : | 200 |
| VOLTS 2: | 230 |
| VOLTS 3: | 460 |
| FRME : | 56 |
| SHAFT CODE: | HZ |
| STATOR DIAMETER: | 6.3 |
| STACK: | 4.25 |
| MOUNTING: | RIGID BASE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1.15 |
| SHIPPING WEIGHT: | 45 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 480.2 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 312 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | L |
| LOCKED ROTOR AMPS: | 52.99 |
| NEMA NOMINAL EFFICIENCY: | 86.9 |
| FULL LOAD AMPS PRIMARY: | 9.0-9.2/4.6 |
| SERVICE FACTOR AMPS PRIMARY: | 9.3-9.6/4.8 |
