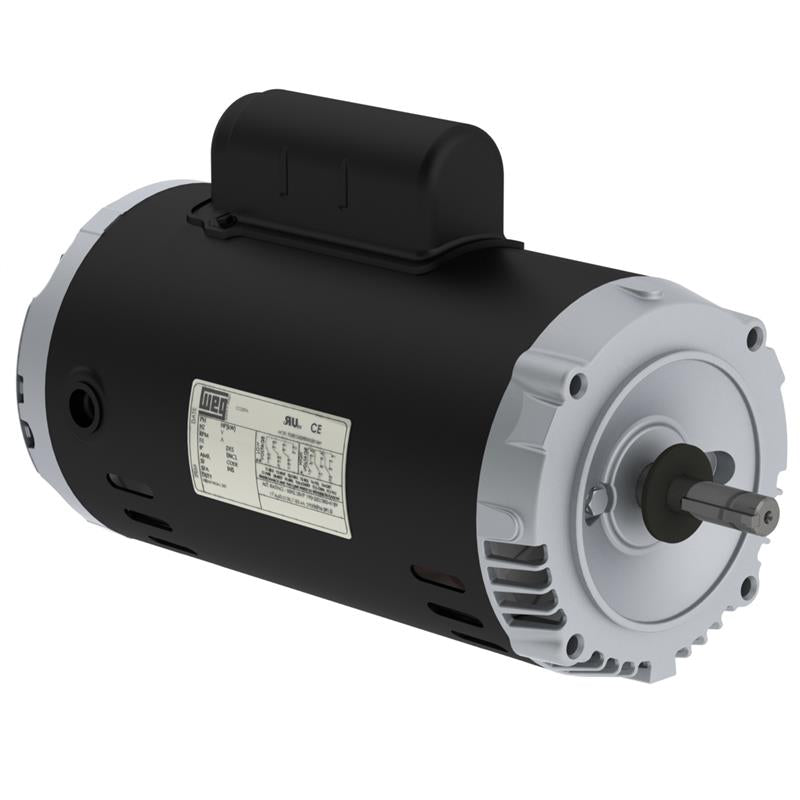

.7536OS1BJPRW56J-S WEG Jet Pump Motor (0 .75 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage, Rolled Steel, W56J Frame, Footless)
.7536OS1BJPRW56J-S WEG Jet Pump Motor (0 .75 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage, Rolled Steel, W56J Frame, Footless)
[COUNT] shoppers are looking at this right now
SKU:.7536OS1BJPRW56J-S
Precio habitual
$269.97 USD
Precio habitual
$296.00 USD
Precio de oferta
$269.97 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG .7536OS1BJPRW56J-S, Jet Pump Motor Type, 0 .75 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage,
| Applications |
| These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in J and C configurations |
| Features |
| Insulation class B |
| Sealed ball bearings (Drive end) |
| NEMA Service factor |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
.7536OS1BJPRW56J-S
|
|
Type
|
Jet Pump Motor
|
|
HP
|
0 .75
|
|
RPM
|
3600
|
|
Enclosure
|
ODP
|
|
Phase
|
Single
|
|
Voltage
|
115/208-230
|
|
Frame
|
W56J
|
|
Approx. Weight (lbs)
|
24
|
|
Service Factor
|
1 .50
|
|
FL Amps @ High
|
4 .80
|
|
FL Eff (%)
|
68 .3
|
|
C Dimension (in)
|
11 .154
|
|
Mounting
|
Footless
|
|
Frame Material
|
Rolled Steel
|
|
Hz
|
60
|
|
Mounting
|
F1
|
|
