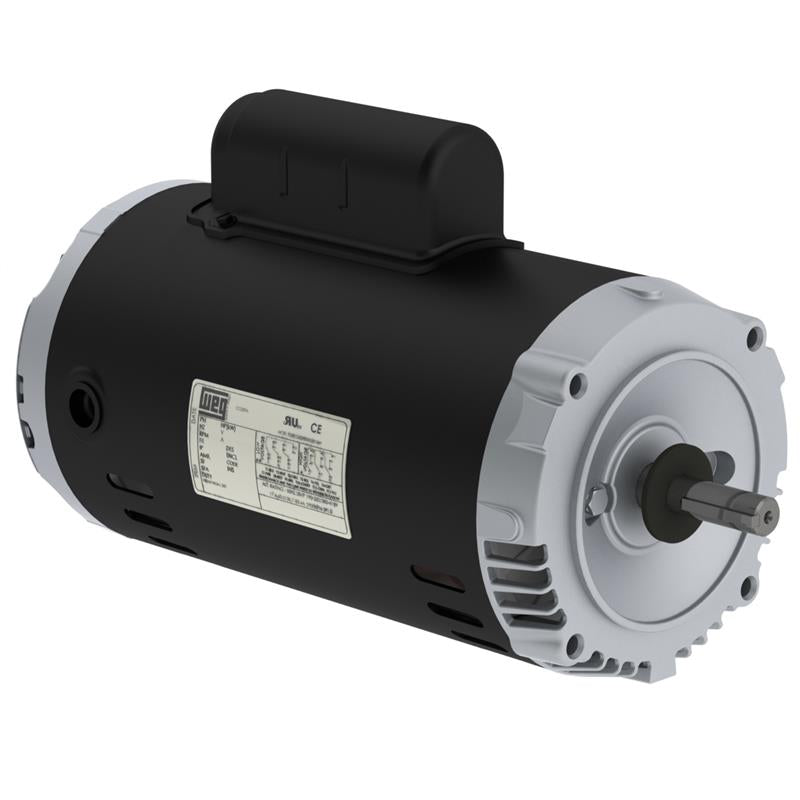

.7536OS1BJPRW56C-S WEG Jet Pump Motor (0 .75 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage)
.7536OS1BJPRW56C-S WEG Jet Pump Motor (0 .75 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage)
SKU:.7536OS1BJPRW56C-S
Precio habitual
$216.44 USD
Precio habitual
Precio de oferta
$216.44 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WEG .7536OS1BJPRW56C-S, Jet Pump Motor Type, 0 .75 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage,
| Applications | |
| These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in J and C configurations | |
| Features | |
| Insulation class B | |
| Sealed ball bearings (Drive end) | |
| NEMA Service factor | |
Specifications | |
Brand |
WEG |
Catalog Number |
.7536OS1BJPRW56C-S |
Type |
Jet Pump Motor |
HP |
0 .75 |
RPM |
3600 |
Enclosure |
ODP |
Phase |
Single |
Voltage |
115/208-230 |
Frame |
W56C |
Approx. Weight (lbs) |
24 |
Service Factor |
1 .50 |
FL Amps @ High |
4 .80 |
FL Eff (%) |
67 .0 |
C Dimension (in) |
10 .654 |
Mounting |
Footless |
Frame Material |
Rolled Steel |
Hz |
60 |
Mounting |
F1 |
Support Documents (pdf) |
