WEG

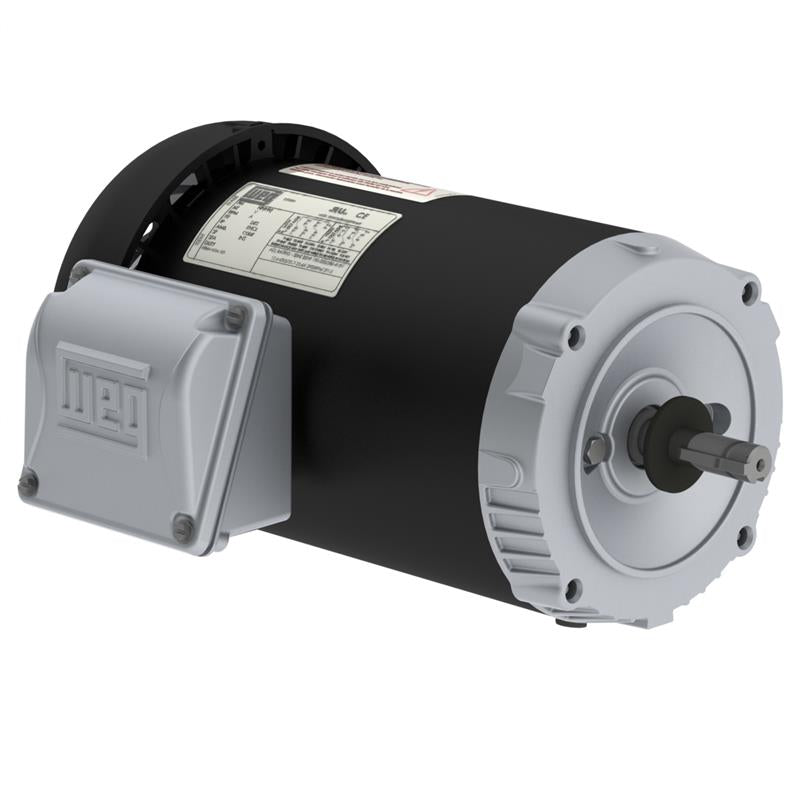

.7536ES3EJPR56J-S WEG Motor, Jet Pump (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3440 RPM)

.7536ES3EJPR56J-S WEG Motor, Jet Pump (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3440 RPM)

SKU:.7536ES3EJPR56J-S

Precio habitual $232.48 USD
Precio habitual Precio de oferta $232.48 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor .7536ES3EJPR56J-S, 0.75 HP , 3440 RPM, B56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications
Commercial and Industrial pumps, Residential pumps(Jacuzzis, pools, hot tubs), Jet pump motor system, Hydraulic pumps
Features
Jet Pump Motor, 3-Phase, Rolled Steel, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
.7536ES3EJPR56J-S
HP
0.75 HP
RPM
3440
FRAME
B56
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
26
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
2.30-2.19/1.10 A
LOCKED ROTOR CURRENT IL IN
7.8
LOCKED ROTOR CURRENT
17.1/8.54 A
LOCKED ROTOR TORQUE
4
BREAKDOWN TORQUE
3.5
EFFICIENCY 50
66.5
EFFICIENCY 75
72.5
EFFICIENCY 100
77
POWER FACTOR 50
0.67
POWER FACTOR 75
0.78
POWER FACTOR 100
0.83
SERVICE FACTOR
1.15 (1.00 at 208V)
INERTIA KGM2
0.00133 kgm
INERTIA SQ FT
0.03156 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
1.18/0.590 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
1.53 Nm
FULL LOAD TORQUE FT
1.13 .ft
SLIP
0.0444
DESIGN
A
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
