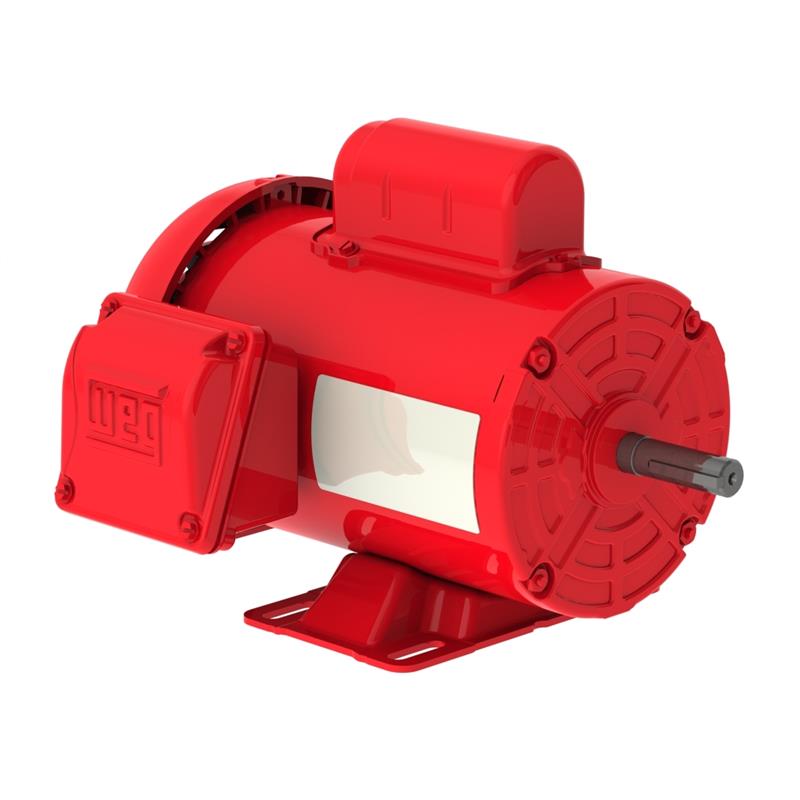

WEG .7536ES1BOL56-S, General Purpose Motor, .75 HP, 3600 RPM, 1 Phase, 56 Frame, TEFC, 115/208-230 Voltage, Foot Mount

Applications
High Starting Torque makes these motors ideal for a wide range of applications.

Features
High Starting Torque
Ball Bearings
NPT Threaded Holes in Terminal Box
Class F insulation
F1 Mounted
V-Ring Seals

Specifications
Brand	WEG
Catalog Number	.7536ES1BOL56-S
Type	General Purpose Motor
HP	.75
RPM	3600
Phase	1
Frame	56
Service Factor	1.15
Enclosure	TEFC
Voltage	115/208-230
Motor Mount	Foot Mount
Full Load Efficiency	66
Full Load AMPS	4
"C" Dimension	12.721
Warranty	1 Year
