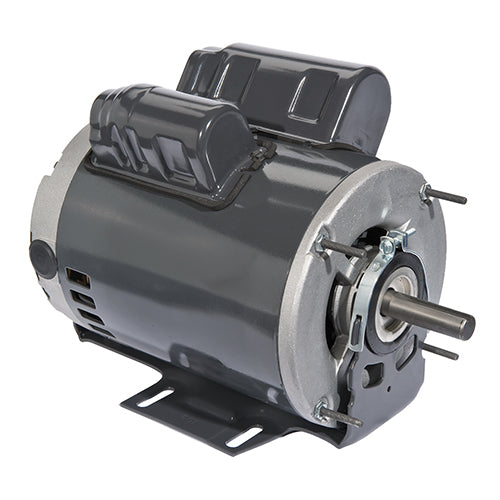

7073 US Motors Single Speed Evaporative Cooler Motor (2 HP, ODP, 1725 RPM, 115/230V)
7073 US Motors Single Speed Evaporative Cooler Motor (2 HP, ODP, 1725 RPM, 115/230V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:7073
Precio habitual
$565.59 USD
Precio habitual
$0.00 USD
Precio de oferta
$565.59 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
7073 US Motors Single Speed Evaporative Cooler Motor (2 HP, ODP, 1725 RPM, 115/230V)
| Model_Number: | T063BWY1126022B |
| Catalog | 7073 |
| PRODUCT NAME: | 2 HP - ODP - 1725 |
| PHASETYPE: | 1_CAPACITOR START - |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 2 |
| KILOWATTS: | 1.5 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 V |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRME : | 56 |
| SHAFT CODE: | Z |
| STATOR DIAMETER: | 6.3 |
| STACK: | 4.25 |
| MOUNTING: | RESILIENT |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CCW LEAD END REV |
| SERVICE FACTOR: | 1 |
| RUNCAPMFD: | 25 |
| RUNCAPVOLTS: | 370 |
| STARTCAPMFD: | 92.4 |
| SHIPPING WEIGHT: | 46 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 244.8 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 75.58 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | G |
| LOCKED ROTOR AMPS: | 92.04 |
| FULL LOAD AMPS PRIMARY: | 19.0/8.5 |
| SERVICE FACTOR AMPS PRIMARY: | 19.0/8.5 |
