Hitachi Pump Motor

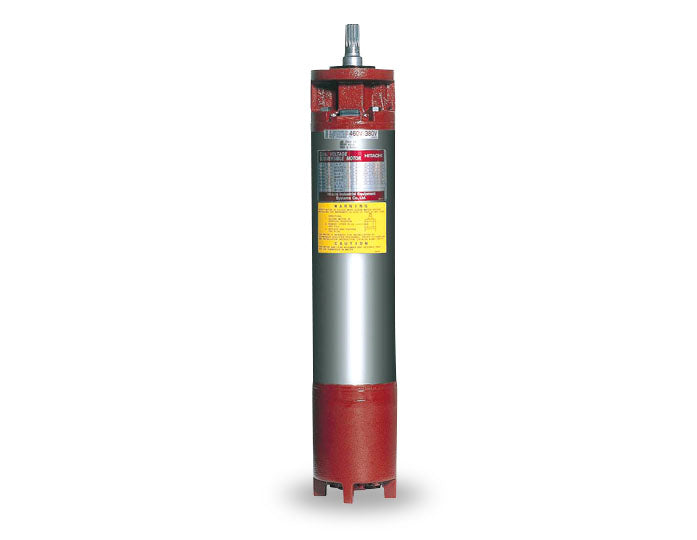

6HIT2-40-4 Pentair Hitachi 6" Motor (40HP, 460V, 3PH, 3600RPM)
6HIT2-40-4 Pentair Hitachi 6" Motor (40HP, 460V, 3PH, 3600RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:6HIT2-40-4
Precio habitual
$5,587.20 USD
Precio habitual
$11,640.00 USD
Precio de oferta
$5,587.20 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
STA-RITE 6HIT2-40-4, 6" Diameter, 40 HP, 460 Volts, 3 Phase, 3600 RPM, 1.15 ServiceFactor, Hitachi 6" Motor
| Applications | |
| Hitachi Motors are designed for long service life and years of dependable operation. Innovative design and robust characteristics make this the perfect motor for your pumping applications. | |
| Features | |
| Corrosion-Resistant Design For long life | |
| High-Capacity Kingsbury-type Bearings performance | |
| Low-Profile NEMA Design For ease of installation | |
| VFD-Compatible | |
| Replaceable Plug-in Motor Lead For ease of maintenance | |
| Higher Efficiencies and Lower Current Consumption Reduced energy costs | |
Specifications | |
Brand |
STA-RITE |
Model Number |
6HIT2-40-4 |
Type |
6" Hitachi Submersible Motor |
Diameter |
6" |
HP |
40 |
Kw |
30 |
Volts |
460 |
Phase |
3 |
Hz |
60 |
Poles |
2 |
RPM |
3600 |
Lead Length |
200" |
ServiceFactor |
1.15 |
Rated Input Amps |
56 |
Service Factor Input Amps |
61 |
Winding Resistance(ohms) |
0.358 |
ThrustCapacity |
5000 |
Length(L) |
40.55" |
Diameter(D) |
5.5" |
Motor Sleeve |
Stainless Steel |
Weight |
187 |
Notes |
See Support Document |
Support Documents (pdf) | ||||
