Hitachi Pump Motor

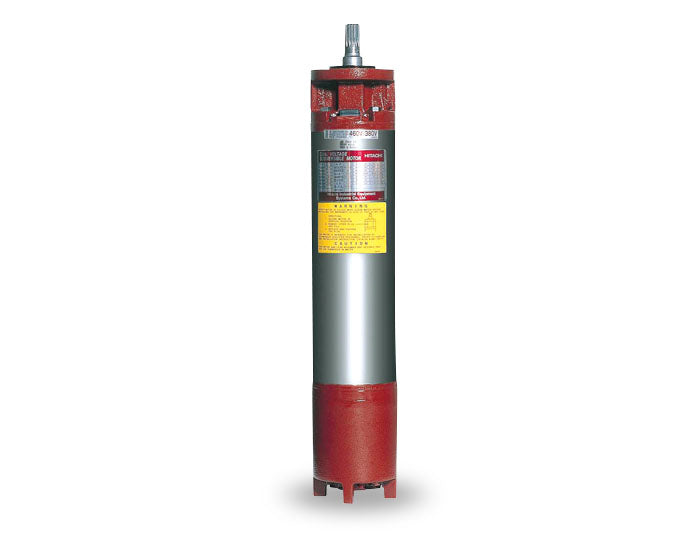

6HIT2-15-4 Pentair Hitachi 6" Motor (15HP, 460V, 3PH, 3600RPM)
6HIT2-15-4 Pentair Hitachi 6" Motor (15HP, 460V, 3PH, 3600RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:6HIT2-15-4
Precio habitual
$2,843.18 USD
Precio habitual
$5,836.00 USD
Precio de oferta
$2,843.18 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
STA-RITE 6HIT2-15-4, 6" Diameter, 15 HP, 460 Volts, 3 Phase, 3600 RPM, 1.15 Service Factor, Hitachi 6" Motor
| Applications | |
| Hitachi Motors are designed for long service life and years of dependable operation. Innovative design and robust characteristics make this the perfect motor for your pumping applications. | |
| Features | |
| Corrosion-Resistant Design For long life | |
| High-Capacity Kingsbury-type Bearings performance | |
| Low-Profile NEMA Design For ease of installation | |
| VFD-Compatible | |
| Replaceable Plug-in Motor Lead For ease of maintenance | |
| Higher Efficiencies and Lower Current Consumption Reduced energy costs | |
|
Specifications |
|
|
Brand
|
STA-RITE
|
|
Model Number
|
6HIT2-15-4
|
|
Type
|
6" Hitachi Submersible Motor
|
|
Diameter
|
6"
|
|
HP
|
15
|
|
Kw
|
11
|
|
Volts
|
460
|
|
Phase
|
3
|
|
Hz
|
60
|
|
Poles
|
2
|
|
RPM
|
3600
|
|
Lead Length
|
200"
|
|
ServiceFactor
|
1.15
|
|
Rated Input Amps
|
21
|
|
Service Factor Input Amps
|
23
|
|
Winding Resistance(ohms)
|
1.074
|
|
ThrustCapacity
|
3500
|
|
Length(L)
|
29.92"
|
|
Diameter(D)
|
5.5"
|
|
Motor Sleeve
|
Stainless Steel
|
|
Weight
|
128
|
|
Notes
|
See Support Document
|
|
Support Documents (pdf)
|
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
