U.S. Motors

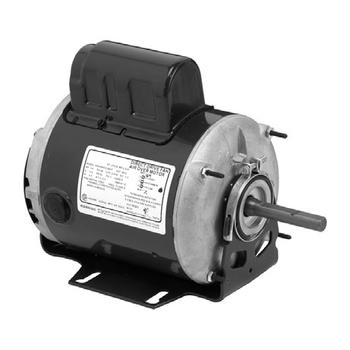

6326 Nidec US Motor Centrifugal Ventilation Direct Drive Blower Motor (.25HP, TEAO Enclosure, 1725 RPM, 115V, 56 Frame)

6326 Nidec US Motor Centrifugal Ventilation Direct Drive Blower Motor (.25HP, TEAO Enclosure, 1725 RPM, 115V, 56 Frame)

$222.00 USD
$333.00 USD $222.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

 Más opciones de pago

6326 Nidec US Motor Centrifugal Ventilation Direct Drive Blower Motor (.25HP, TEAO Enclosure, 1725 RPM, 115V, 56 Frame)

Split Phase & Permanent Split Capacitor
Centrifugal Ventilation Direct Drive Blower
Totally Enclosed Air Over (TEAO)
Resilient/Stud Mount
5.6" & 6.3" Diameter
Model_Number
S063SRH8134012B
PRODUCT NAME
.25 HP - TEAO - 1725
PHASETYPE
1_SPLIT PHASE
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.25
KILOWATTS
0.2
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
56
SHAFT CODE
Z
STATOR DIAMETER
6.3
STACK
1.125
MOUNTING
CRADLE/STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
SHIPPING WEIGHT
18
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
37.48
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
21.06
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
N
LOCKED ROTOR AMPS
25.79
FULL LOAD AMPS PRIMARY
5.0
SERVICE FACTOR AMPS PRIMARY
5.0



Ver todos los detalles
