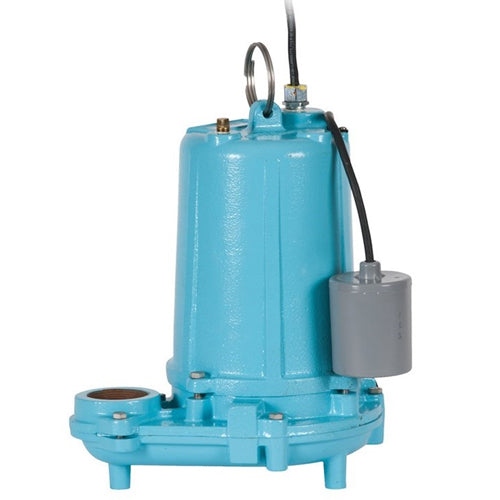

620219 Little Giant WS50HAM-20 Effluent Pump (1/2 HP, 115 Volts, Single Phase, 130 Max GPM)

Little Giant 620219, UPC 010121121546, Type Effluent Pump, Series WS Effluent Series, Model WS50HAM-20, HP 1/2, Volts 115, Phase Single, Amps 15, Max GPM 130, Little Giant Effluent Pump

Applications
Dewatering, water transfer, effl uent and wastewater removal
Features
1/3 hp, 1/2 hp, or 1 hp oil-filled motor with overload protection
Designed for hi-torque with automatic reset
Cast iron motor and pump housing
Solids handling non-clog impeller
Stainless steel heat treated shaft
Double ball bearing and mechanical carbon/ceramic seal
Piggyback mechanical float option available for automatic operation
cCSAus listed

Tech Specs
Brand	Little Giant
Model Number	620219
Weight	58
UPC	010121121546
Type	Effluent Pump
Series	WS Effluent Series
Model	WS50HAM-20
HP	1/2
Volts	115
Phase	Single
Amps	15
Max GPM	130
GPM @ 5'	130
GPM @ 10'	115
GPM @ 15'	105
GPM @ 20'	98
GPM @ 40'	-
GPM @ 60'	-
GPM @ 80'	-
Shut Off (ft)	63
Operation	Piggyback Mechanical Float
Hertz	60
Watts	-
Cord (ft)	20
Height (in)	13.75
Length (in)	12.25
Width (in)	9.38
Weight (lbs)	58
Notes	See Support Documents

Support Documents (pdf)
WS Effluent Series Effluent Pumps
