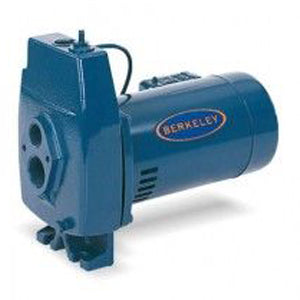

5FL-L Berkeley Convertible Jet Pump (1/2 HP, 115 / 230 Voltage, 1-1/4" Suction, 1" Discharge, Base Mounted, Cast Iron)

Berkeley 5FL-L, Cast Iron Convertible Jet Pumps, FL and FLJ Series, 1/2 HP, 115 / 230 Voltage, 1-1/4" Suction, 1" Discharge, Base Mounted, Cast Iron Body,

Applications
FL Series Pumps feature a proven self-priming converible design. The same convertible jet can be attached to pump for use on shallow well installation, or be utilized in 4 or larger wells for use as a double pipe deep well jet. FL Series Pumps provide high capacities up to 11 GPM depths to 90 feet. They are rated for 30-50 PSI operation. Applications include water systems and sprinkling for homes, farms and cottages.
Features
Quality Cast Iron Construction: Pump Body is Rugged One-Piece Unit, Specially Treated to Resist Corrosion. Drain Port Provided for Easy Winterizing
Precision Molded Lexan Impeller for Perfect Balance..... Ultra Smooth for Highest Performance and Efficiency
Precision Molded Diffuser Primes Faster, Handles More Air. Multi-Port, Precision-Molded Reinforced Polypropylene
High Quality Pressure Switch With Adjustable Cut-In Setting. Fixed 20 PSI Differential
Mechanical Shaft Seal With Precision Lapped Highly Polished Carbon-Ceramic Surfaces and Stainless Steel Construction
Superior Insulations Materials on Motor Windings Protect Against Excessive Moisture and Contaminants .... Assures Prolonged Motor Life
Balanced Rotor is Die Cast Under High Pressures for Uniform Performance and Greater Efficiency
Shielded, Permanently Lubricated Ball Bearings, Extensively Tested to Ensure Extended Life and Smooth, Quiet Operation
416 Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One Piece Threaded Shaft for Positive Impeller Drive and Alignment
Dustproof Motor Canopy Protects All Electrical Components From Dirt, Dust and Insects. Ventilating Air Cannot Contaminate Vital Switching Components ... The Most Common Cause of Motor Failure

Specifications
Brand	Berkeley
Catalog Number	5FL-L
Type	Cast Iron Convertible Jet Pumps
Series	FL and FLJ
HP	1/2
Voltage	115 / 230
Suction	1-1/4"
Drive	1"
Discharge	1"
Description	Base Mounted
Body	Cast Iron
Impeller	Lexan
Diffuser	Reinforced polypropylene
Shaft	One-piece threaded 416 stainless steel
Pressure Switch Pre-Set	30-50 PSI
Suction Ports	Drive-over-Suction
