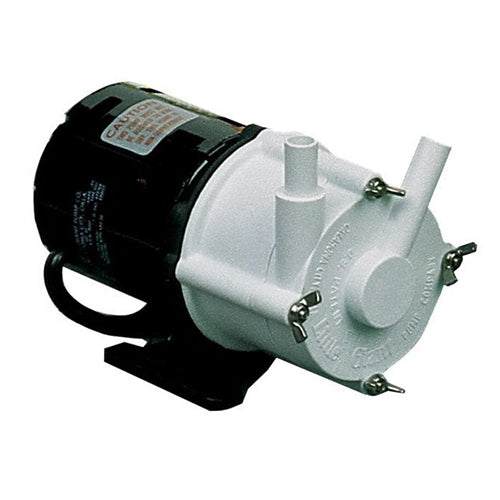

589002 Mody Pumps Magnetic Drive Pump (1/70 HP, 115 Volts, 1-MD Model)
589002 Mody Pumps Magnetic Drive Pump (1/70 HP, 115 Volts, 1-MD Model)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:589002
Precio habitual
$0.00 USD
Precio habitual
$367.00 USD
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Mody Pumps 589002, 1-MD Model No., 1/70 HP, 115 Volts,
| Applications | |
| The Little Giant MD series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. Impeller is glass-filled polypropylene and ceramagnet A (barium ferrite). Shaft and thrust washers are titanium for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump. | |
| Features | |
| Thermally protected, open, fan-cooled motor | |
| Sleeve bearings | |
| 6' power cord with 3-prong plug (no plug on 230V) | |
| Specific gravity to 1.1 | |
| Fluid temperature to 150F | |
| Ambient air temperature to 77F | |
| Volute Glass-filled polypropylene | |
| Housing Glass-filled polypropylene | |
| Impeller Glass-filled polypropylene and ceramagnet A (barium ferrite) | |
| Shaft Titanium | |
| Thrust Washers Titanium, O-Ring Nitrile | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
589002 |
Type |
Magnetic Drive Pump |
Model No. |
1-MD |
Item No. |
589002 |
Intake Size |
1/2" Hose |
Discharge Size |
1/2" Hose |
Listing(s) |
UR/C-CSA |
HP |
1/70 |
Volts |
115 |
Hertz |
60 |
Amps |
0.8 |
Watts |
60 |
Shut Feet |
10.6 |
Off PSI |
4.6 |
Power Cord (ft.) |
6 |
Weight (lbs.) |
4 |
Support Documents (pdf) |
