583603 Little Giant P-AAA Series Magnetic Drive Pump (5-MD-HC Model, 1/8 HP, 50/60 Hz, 115 VAC, 1050 Max GPH, 6' Cord, Manual Switch Type, 200F Max Temp)

583603 Little Giant P-AAA Series Magnetic Drive Pump (5-MD-HC Model, 1/8 HP, 50/60 Hz, 115 VAC, 1050 Max GPH, 6' Cord, Manual Switch Type, 200F Max Temp)

[COUNT] shoppers are looking at this right now

583603

$0.00 USD
$0.00 USD $0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

VIEW PRICE IN CART

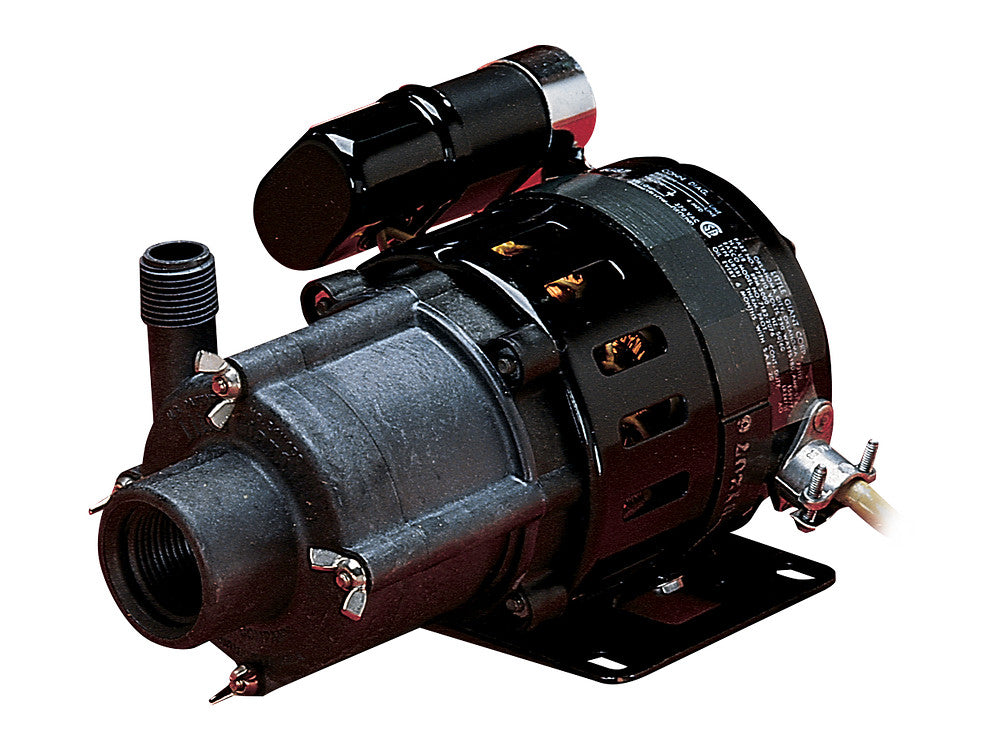

583603 Little Giant Magnetic Drive Pumps (1/8 HP, 50/60 Hz, 115 VAC, 6 ft cord, Manual Switch)

Magnetically driven pumps for highly corrosive chemicals and solutions. These pumps feature polyphenylene sulfide, Viton, carbon and ceramic parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft power cord and 3-prong molded plug.

Ratings
HP 1/8 hp
Frequency 50Hz/60Hz
Amps - Full Load 2.02 A
Full Load Watts 240 W
Volts 115 VAC
Cord Length 6 ft
Maximum Flow Rate - 60Hz 17.5 gpm / 1050 gph
Minimum Flow Rate - 60Hz 0.02 gpm / 1 gph
Shut-Off 27.5 ft
Minimum Head - 60Hz 1 ft
Shut Off Height - 60Hz 27.5 ft
Max PSIG - 60Hz 11.9 PSI
Switch Type Manual

Liquid
Max Fluid Temperature 200 °F

Materials of Construction
Pump Body Material Plastic
Discharge Head Material Thermoplastic
Impeller Material GF Polypropylene

Installation
Discharge Type Threaded - MNPT
Suction Type Threaded - FNPT
Product Length 8.81 "
Product Width 5.41 "
Product Height 5.54 "
Pump Length 8.81 "
Product Weight 9 lb
Product Weight w/ Pack 9.5 lb
Carton Length 11.5 "
Carton Width 7.25 "
Carton Height 6.75 "
