Little Giant

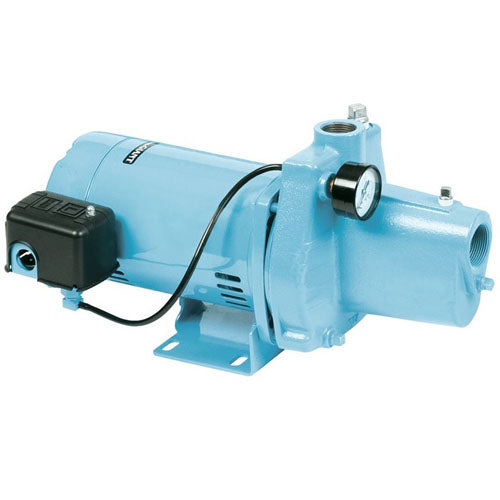

558274 Little Giant JP Series Shallow Well Jet Pump (JP-050-C Model, 1/2 HP, 1 Phase, 60 Hz, 115/230 Voltage, 64.2 Max PSIG, 1" FNPT Discharge, 1.25" FNPT Suction)
558274 Little Giant JP Series Shallow Well Jet Pump (JP-050-C Model, 1/2 HP, 1 Phase, 60 Hz, 115/230 Voltage, 64.2 Max PSIG, 1" FNPT Discharge, 1.25" FNPT Suction)
[COUNT] shoppers are looking at this right now
No reviews
SKU:558274
Precio habitual
$0.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
VIEW PRICE IN CART
No se pudo cargar la disponibilidad de retiro
Little Giant 558274, Shallow Well Jet Pump Type, 1/2 HP, 1 Phase, 115/230 Voltage, 1" NPT Discharge,
| Applications | |
| For supplying fresh water to rural homes, farms and cabins. For installations where the vertical distance from the pump to the pumping water level does not exceed 25 feet | |
| Features | |
| Cast iron casing and seal plate for durability and long life | |
| A.O. Smith higher than standard NEMA service factor dual compartment motor | |
| Dual voltage 115/230V | |
| Square D pressure switch preset at 30-50 PSI | |
| 1-1/4" suction, 1" NPT discharge and brass flow control valve | |
| Pressure gage included with all models | |
| Stainless steel motor shaft and dual ball bearings | |
| Precision engineered thermoplastic impeller, diffuser, nozzle and venturi | |
| Clean-out plug to easily unclog nozzle | |
Specifications | |
Brand |
Little Giant |
Catalog Number |
558274 |
Type |
Shallow Well Jet Pump |
Series |
JP |
Model |
JP-050-C |
HP |
1/2 |
Phase |
1 |
Voltage |
115/230 |
Suction |
1-1/4" |
Discharge |
1" NPT |
Casing |
Cast Iron |
Pressure Gauge |
Included |
Notes |
See Support documents |
Support Documents (pdf) |
