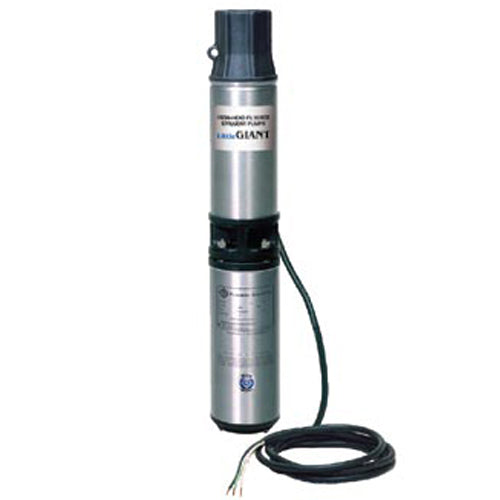

558224 Little Giant WE20G05P4-22 High Head Filtered Effluent Pump (1/2 HP, 230 Volts, Single Phase, 26 Max GPM)

Little Giant 558224, UPC 010121118317, Type High Head Filtered Effluent Pump, Series WE Series, Model WE20G05P4-22, HP 1/2, Volts 230, Phase Single, Amps -, Max GPM 26, Little Giant High Head Filtered Effluent Pump

Applications
Filtered effluent service, aeration, ornamental fountains/waterfalls
Features
1/2 hp Franklin Electric submersible motor
Heavy duty, 300 V, 10' (3 m) SJOW motor stripped leads
1-1/4" FNPT (31.7 mm) discharge
Removable built-in check valve
Non-corrosive thermoplastic discharge and motor brackets
Proven Noryl staging allows close tolerances and increased performance
High quality top bearing for maximum durability and years of reliable service
Hex rubber bearing has extra-large surface for shaft stability and multiple flow channels for keeping particles away from bearing surfaces
Stainless steel upthrust washer prevents excessive wear in service applications

Tech Specs
Brand	Little Giant
Model Number	558224
Weight	25
UPC	010121118317
Type	High Head Filtered Effluent Pump
Series	WE Series
Model	WE20G05P4-22
HP	1/2
Volts	230
Phase	Single
Amps	-
Max GPM	26
GPM @ 50'	26
GPM @ 100'	20
GPM @ 150'	8
GPM @ 200'	-
Shut Off (ft)	160'
Hertz	60
Cord (ft)	10'
Height (in)	23.9
Length (in)	3.9
Weight (lbs)	25
Notes	See Support Documents

Support Documents (pdf)
WE Series High Head Filtered Effluent Pumps
