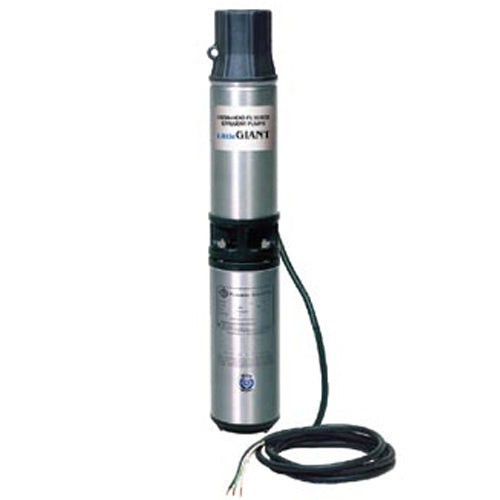

558222 Little Giant WE10G05P4-22 High Head Filtered Effluent Pump (1/2 HP, 230 Volts, Single Phase, 15 Max GPM)
558222 Little Giant WE10G05P4-22 High Head Filtered Effluent Pump (1/2 HP, 230 Volts, Single Phase, 15 Max GPM)
SKU:558222
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Little Giant 558222, UPC 010121118294, Type High Head Filtered Effluent Pump, Series WE Series, Model WE10G05P4-22, HP 1/2, Volts 230, Phase Single, Amps -, Max GPM 15, Little Giant High Head Filtered Effluent Pump
| Applications | |
| Filtered effluent service, aeration, ornamental fountains/waterfalls | |
| Features | |
| 1/2 hp Franklin Electric submersible motor | |
| Heavy duty, 300 V, 10' (3 m) SJOW motor stripped leads | |
| 1-1/4" FNPT (31.7 mm) discharge | |
| Removable built-in check valve | |
| Non-corrosive thermoplastic discharge and motor brackets | |
| Proven Noryl staging allows close tolerances and increased performance | |
| High quality top bearing for maximum durability and years of reliable service | |
| Hex rubber bearing has extra-large surface for shaft stability and multiple flow channels for keeping particles away from bearing surfaces | |
| Stainless steel upthrust washer prevents excessive wear in service applications | |
Tech Specs | |
Brand |
Little Giant |
Model Number |
558222 |
Weight |
24 |
UPC |
010121118294 |
Type |
High Head Filtered Effluent Pump |
Series |
WE Series |
Model |
WE10G05P4-22 |
HP |
1/2 |
Volts |
230 |
Phase |
Single |
Amps |
- |
Max GPM |
15 |
GPM @ 50' |
15 |
GPM @ 100' |
13 |
GPM @ 150' |
10 |
GPM @ 200' |
7 |
Shut Off (ft) |
250' |
Hertz |
60 |
Cord (ft) |
10' |
Height (in) |
21.9 |
Length (in) |
3.9 |
Weight (lbs) |
24 |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
| WE Series High Head Filtered Effluent Pumps | ||||
