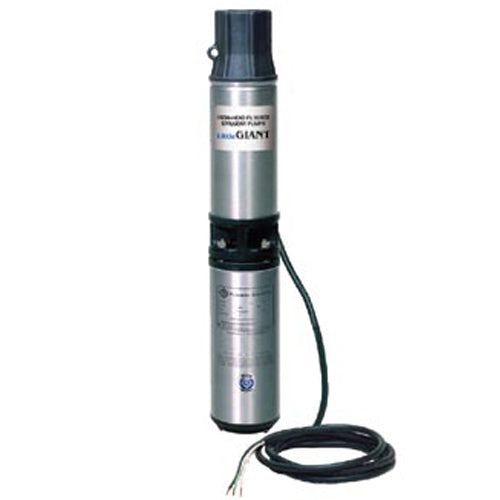

558221 Little Giant WE10G05P4-21 High Head Filtered Effluent Pump (1/2 HP, 115 Volts, Single Phase, 15 Max GPM)

Little Giant 558221, UPC 010121118287, Type High Head Filtered Effluent Pump, Series WE Series, Model WE10G05P4-21, HP 1/2, Volts 115, Phase Single, Amps -, Max GPM 15, Little Giant High Head Filtered Effluent Pump

Applications
Filtered effluent service, aeration, ornamental fountains/waterfalls
Features
1/2 hp Franklin Electric submersible motor
Heavy duty, 300 V, 10' (3 m) SJOW motor stripped leads
1-1/4" FNPT (31.7 mm) discharge
Removable built-in check valve
Non-corrosive thermoplastic discharge and motor brackets
Proven Noryl staging allows close tolerances and increased performance
High quality top bearing for maximum durability and years of reliable service
Hex rubber bearing has extra-large surface for shaft stability and multiple flow channels for keeping particles away from bearing surfaces
Stainless steel upthrust washer prevents excessive wear in service applications

Tech Specs
Brand	Little Giant
Model Number	558221
Weight	24
UPC	010121118287
Type	High Head Filtered Effluent Pump
Series	WE Series
Model	WE10G05P4-21
HP	1/2
Volts	115
Phase	Single
Amps	-
Max GPM	15
GPM @ 50'	15
GPM @ 100'	13
GPM @ 150'	10
GPM @ 200'	7
Shut Off (ft)	250'
Hertz	60
Cord (ft)	10'
Height (in)	21.9
Length (in)	3.9
Weight (lbs)	24
Notes	See Support Documents

Support Documents (pdf)
WE Series High Head Filtered Effluent Pumps
