Little Giant

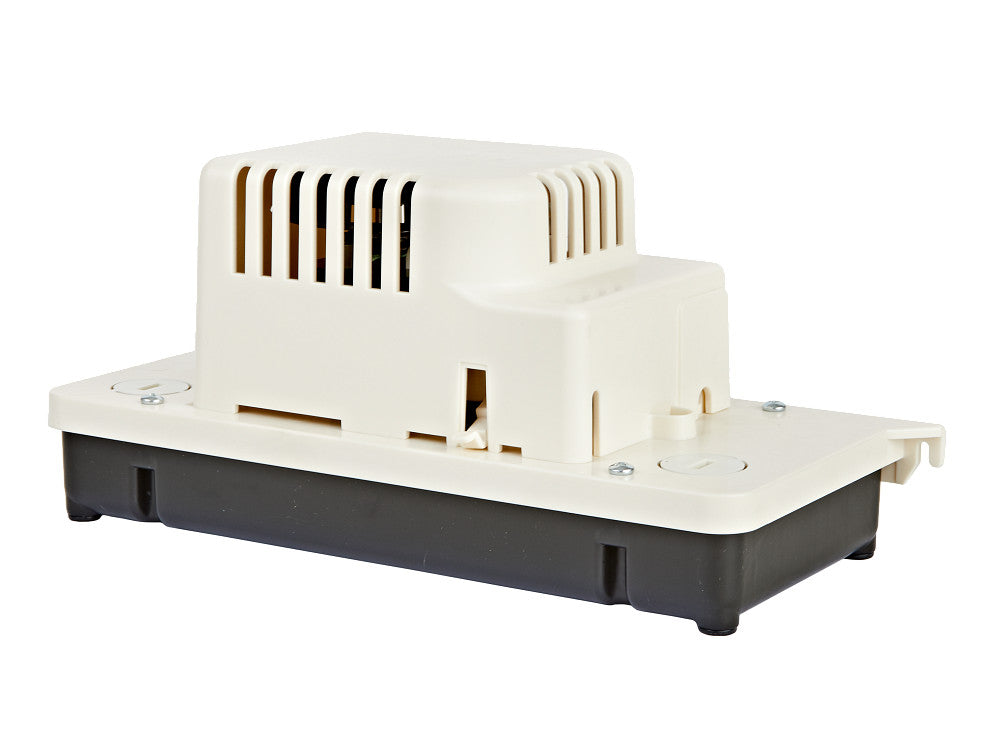

554202101 Little Giant Low-Profile Condensate Pump (Model # VCCA-20ULS, 1/30 HP, 50/60 Hz, 230 VAC, 80 GPH, 7.4 PSI, 6 ft cord)
554202101 Little Giant Low-Profile Condensate Pump (Model # VCCA-20ULS, 1/30 HP, 50/60 Hz, 230 VAC, 80 GPH, 7.4 PSI, 6 ft cord)
SKU:554202101
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
554202101 Little Giant Low-Profile Condensate Pump (Model # VCCA-20ULS, 1/30 HP, 50/60 Hz, 230 VAC, 80 GPH, 7.4 PSI, 6 ft cord)
Ideal for small spaces where condensation removal is necessary, the VCCA-20ULS low profile condensate pump boasts a compact design including a 1/2-gallon tank capacity and is equipped with a float/switch mechanism for automatic start and stop functionality. The low profile condensate pump also includes an auxiliary switch that is configured to open a thermostat circuit in the event of high-water level in the pump reservoir – thereby stopping the production of condensate. The unit has a high-impact polymer pump base, stainless steel shaft, and ABS plastic tank cover and switch housing. This model also includes an ABS tank, motor cover, and volute with stainless steel shaft. Easy access for routine inspection and maintenance.
Ratings |
|
| HP | 1/30 hp |
| Frequency | 50Hz/60Hz |
| Amps - Full Load | 0.6 A |
| Full Load Watts | 75 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate - 60Hz | 1.33 gpm / 80 gph |
| Max PSIG | 7.4 PSI |
| Max Flow Rate - 50Hz | 1.33 gpm / 80 gph |
| Shut-Off | 17 ft |
| Safety Switch | Yes |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Check Valve | Yes |
Installation |
|
| Discharge | 0.38 " |
| Product Length | 11.96 " |
| Product Width | 5.02 " |
| Product Height | 5.23 " |
| Product Weight | 5 lb |
| Product Weight w/ Pack | 5.4 lb |
| Carton Length | 13 " |
| Carton Width | 5.13 " |
| Carton Height | 5.25 " |
| Tubing Included | No |
