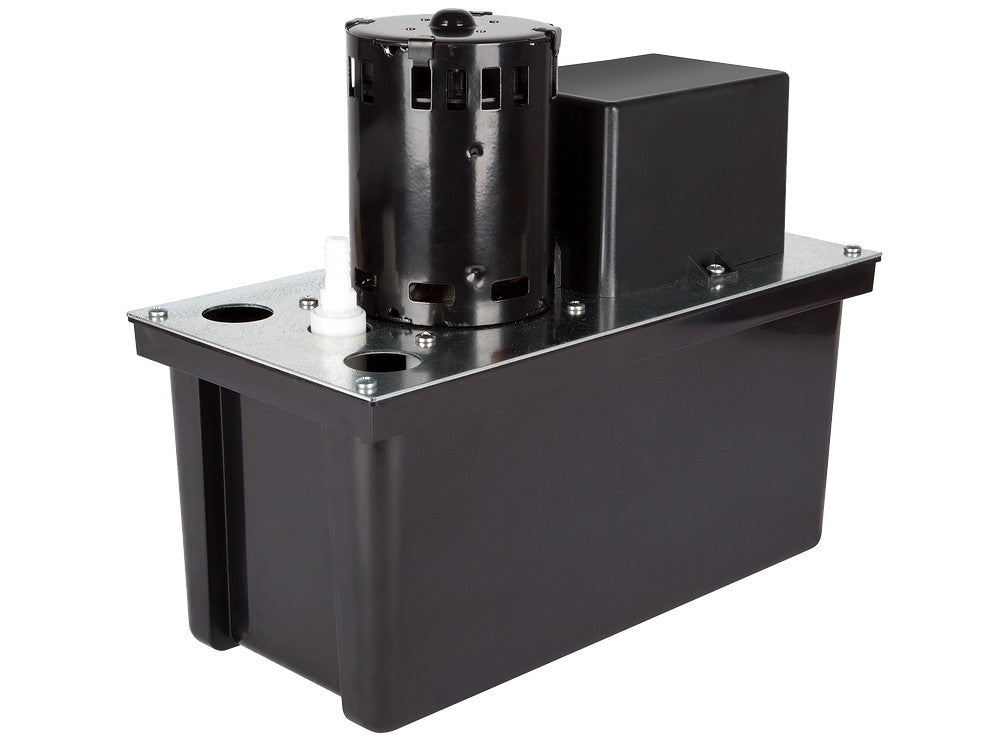

553211 Little Giant High-Capacity Condensate Pump (Model # VCL-24ULS, 1/18 HP, 50/60 Hz, 230 VAC, 270/200 GPH, 10.4 PSI, 6 ft Cord)
553211 Little Giant High-Capacity Condensate Pump (Model # VCL-24ULS, 1/18 HP, 50/60 Hz, 230 VAC, 270/200 GPH, 10.4 PSI, 6 ft Cord)
SKU:553211
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
553211 Little Giant High-Capacity Condensate Pump (Model # VCL-24ULS, 1/18 HP, 50/60 Hz, 230 VAC, 270/200 GPH, 10.4 PSI, 6 ft Cord)
VCL-24ULS Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate. Features 1/18 horsepower motor, 1 gallon tank capacity, flow rate of 270 GPH at 1' and handles up to 120 degrees Fahrenheit.
Ratings |
|
| HP | 1/18 hp |
| Frequency | 50Hz/60Hz |
| Amps - Full Load | 1.2 A |
| Full Load Watts | 148 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate - 60Hz | 3.33 gpm / 200 gph |
| Max PSIG | 10.4 PSI |
| Max Flow Rate - 50Hz | 4.5 gpm / 270 gph |
| Shut-Off | 24 ft |
| Safety Switch | Yes |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Check Valve | Yes |
Installation |
|
| Discharge | 0.25 " |
| Product Length | 12.11 " |
| Product Width | 6 " |
| Product Height | 10.4 " |
| Pump Length | 12.11 " |
| Product Weight | 8.1 lb |
| Product Weight w/ Pack | 8.6 lb |
| Carton Length | 12.88 " |
| Carton Width | 6.5 " |
| Carton Height | 11 " |
| Tubing Included | No |
