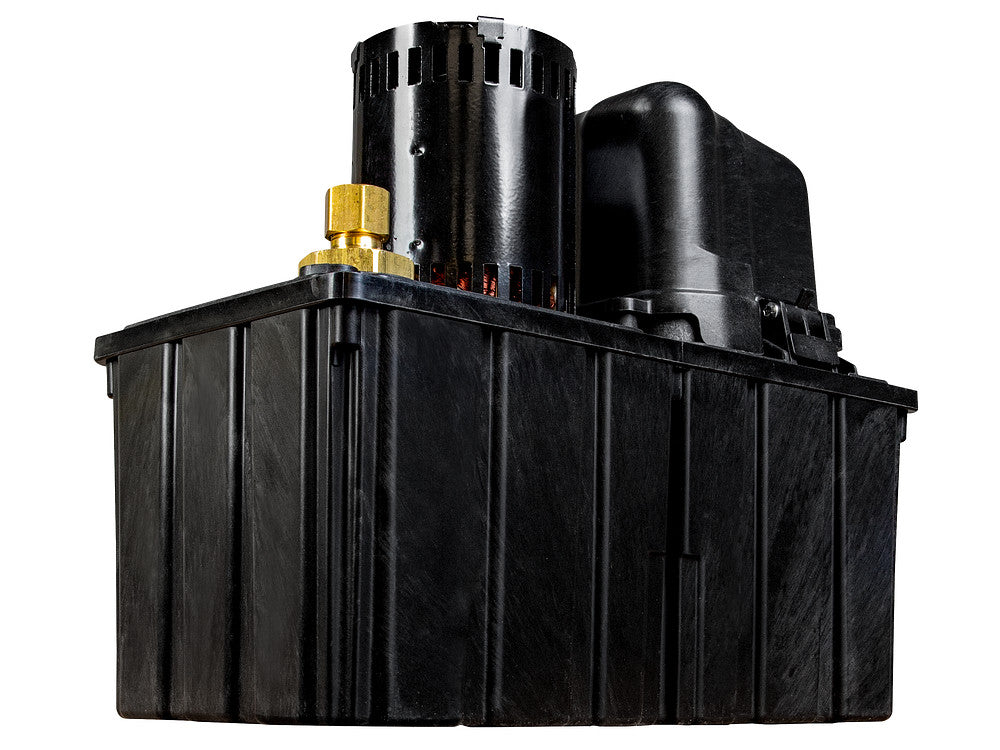

553130102 Little Giant High-Temp Condensate Pump (Model # HT-VCL-30-P, 1/8 HP, 60 Hz, 208/230 VAC, 350 GPM, 1 Gallon, 14 ft cord)
Little Giant High-Temperature Condensate Removal Pump is designed for plenum applications with the capability to handle the most difficult commercial applications. Includes a 1-gallon collection tank Includes float-activated switch for automatic high-level water detection (overflow detection switch).
Ratings |
|
| HP | 1/8 hp |
| Frequency | 60 Hz |
| Amps - Full Load | 1.1 A |
| Full Load Watts | 90 W |
| Volts | 208 VAC / 230 VAC |
| Cord Length | 14 ft |
| Continuous Duty | No |
| Maximum Flow Rate - 60Hz | 350 gpm / 21000 gph |
| Max PSIG | 13.9 PSI |
| Shut-Off | 32 ft |
| Maximum Suction Lift | 9.75 Meters |
| Max Solid Handling Size | 0 " |
| Safety Switch | Yes |
| Tank Capacity | 1 gal |
Liquid |
|
| Max Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Base Material | Polypropylene |
| Pump Body Material | Polypropylene |
| Impeller Type | Closed |
| Impeller Material | Noryl |
| Check Valve | Yes |
Installation |
|
| Discharge Type | Barb |
| Discharge | 0.38 " |
| Suction Type | Screened |
| Product Length | 12 " |
| Product Width | 6 " |
| Product Height | 10.2 " |
| Product Weight | 9.5 lb |
| Product Weight w/ Pack | 11 lb |
| Carton Length | 15.13 " |
| Carton Width | 8.25 " |
| Carton Height | 12.56 " |
| Tubing Included | No |
