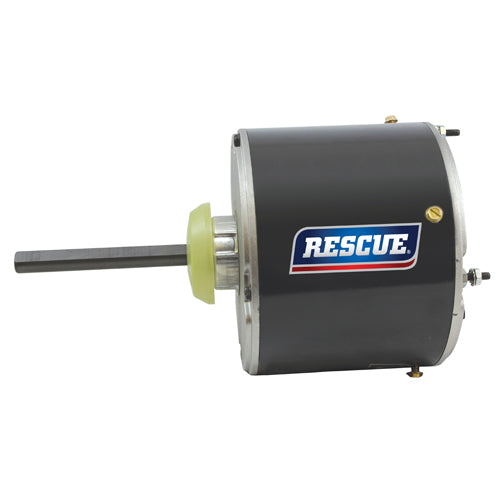

5481H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/4 - 3/4 HP, 460 Volts, 1075 RPM)
5481H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/4 - 3/4 HP, 460 Volts, 1075 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:5481H
Precio habitual
$371.24 USD
Precio habitual
$0.00 USD
Precio de oferta
$371.24 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
US Motors Emerson 5481H, HP: 1/4 - 3/4, RPM: 1075, Volts: 460, Enclosure: TEAO, Diameter: 5.6", High Efficiency HVAC Motor, Trane & Rheem Replacement
| Applications | |
| Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles. | |
| Features | |
| High Ambient Designs | 48" Leads |
| Automatic Reset Thermal Overload Protector | Extended Mounting Studs |
| Designed For Use With 370V Capacitors | Ball Bearings |
| Special Treated Rotor For Corrosion Protection | Reversible Rotation |
| Includes Lead End Mounting Holes For Rheem or Trane Units | Continuous Duty, Air Over |
| High Efficiency Design | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
5481H |
HP |
1/4 - 3/4 |
RPM |
1075 |
Volts |
460 |
Max. Ambient |
158F(70C) |
Speed Tap (RPM) |
High (105) |
Cap. MFD |
15 |
Amps |
2.2 |
Apx. Wt. (lb) |
22 |
Shaft N |
5 |
Shell XI |
6.3 |
Total C |
11.857 |
Enclosure |
TEAO |
Diameter |
5.6" |
Type |
RESCUE Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
