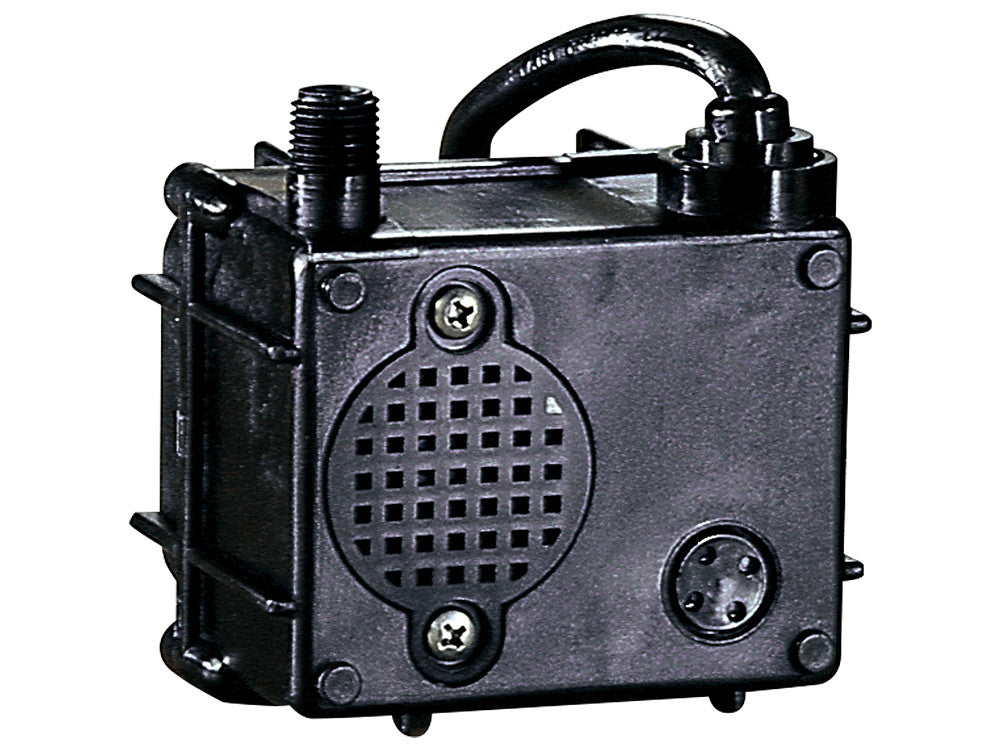

523003 Little Giant Oil Filled Submersible Pump (1/160 HP, 60 Hz, 115 VAC, 6 ft Cord, 120 GPH)
523003 Little Giant Oil Filled Submersible Pump (1/160 HP, 60 Hz, 115 VAC, 6 ft Cord, 120 GPH)
SKU:523003
Precio habitual
$99.20 USD
Precio habitual
$186.00 USD
Precio de oferta
$99.20 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
523003 Little Giant Oil Filled Submersible Pump (1/160 HP, 60 Hz, 115 VAC, 6 ft Cord, 120 GPH)
Small submersible oil filled pump with corrosion resistant nylon housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 120 GPH pump features a 1/4" MNPT discharge, 4.6' shut-off head capability, and screened inlet.
Ratings |
|
| HP | 1/160 hp |
| Frequency | 60 Hz |
| Amps - Full Load | 0.5 A |
| Full Load Watts | 30 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate - 60Hz | 2 gpm / 120 gph |
| Shut-Off | 4.6 ft |
| Shut Off Height - 60Hz | 4.6 ft |
| Max PSIG - 60Hz | 2 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Discharge Head Material | Thermoplastic |
| Pump Volute Material | Nylon |
| Impeller Material | Glass Filled Thermoplastic |
| Intake Screen Material | Glass-Filled Thermoplastic |
| Seal Material | Nitrile Rubber |
Installation |
|
| Discharge Type | Threaded - MNPT |
| Discharge | 0.5 " |
| Suction Type | Screened |
| Product Length | 3.8 " |
| Product Width | 3 " |
| Product Height | 3.7 " |
| Pump Length | 3.8 " |
| Product Weight | 2 lb |
| Product Weight w/ Pack | 2.83 lb |
| Carton Length | 6.25 " |
| Carton Width | 6.25 " |
| Carton Height | 4.25 " |
