• 520250 Little Giant 20E Series Effluent Pump (20E-CIM Model, 2 HP, 230 Volts, Three Phase, 135 Max GPM, Manual Switch, 2" Discharge) - KG Power Systems
1 1

Little Giant

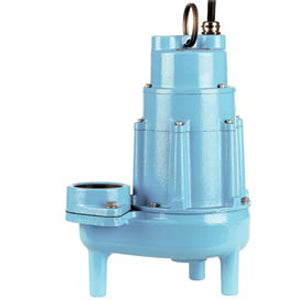

520250 Little Giant 20E Series Effluent Pump (20E-CIM Model, 2 HP, 230 Volts, Three Phase, 135 Max GPM, Manual Switch, 2" Discharge)

520250 Little Giant 20E Series Effluent Pump (20E-CIM Model, 2 HP, 230 Volts, Three Phase, 135 Max GPM, Manual Switch, 2" Discharge)

[COUNT] shoppers are looking at this right now

520250

$1,942.29 USD
$3,399.00 USD $1,942.29 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Little Giant 520250, UPC 010121202504, Type Effluent Pump, Series 20E Series, Model 20E-CIM*, HP 2, Volts 230, Phase Three, Amps 11.6, Max GPM 135, Little Giant Effluent Pump

Applications
Dewatering, water transfer, effl uent and wastewater removal
Features
2 hp permanent split capacitor (PSC) motor with overload protection
Completely submersible, designed for continuous duty
Epoxy coated cast iron housing, cover and volute
Carbon/ceramic shaft seal
Upper and lower ball bearings
UL and CSA listed

Tech Specs

Brand
Little Giant
Model Number
520250
Weight
92
UPC
010121202504
Type
Effluent Pump
Series
20E Series
Model
20E-CIM*
HP
2
Volts
230
Phase
Three
Amps
11.6
Max GPM
135
GPM @ 20'
135
GPM @ 30'
125
GPM @ 40'
110
GPM @ 80'
62
Shut Off (ft)
110
PSI
47.6
Operation
Manual
Hertz
60
Watts
2476
Cord (ft)
20
Height (in)
17.8
Length (in)
12.9
Width (in)
8.4
Weight (lbs)
92
Notes
See Support Documents

Support Documents (pdf)

20E Series Effluent Pumps
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
Ver todos los detalles
