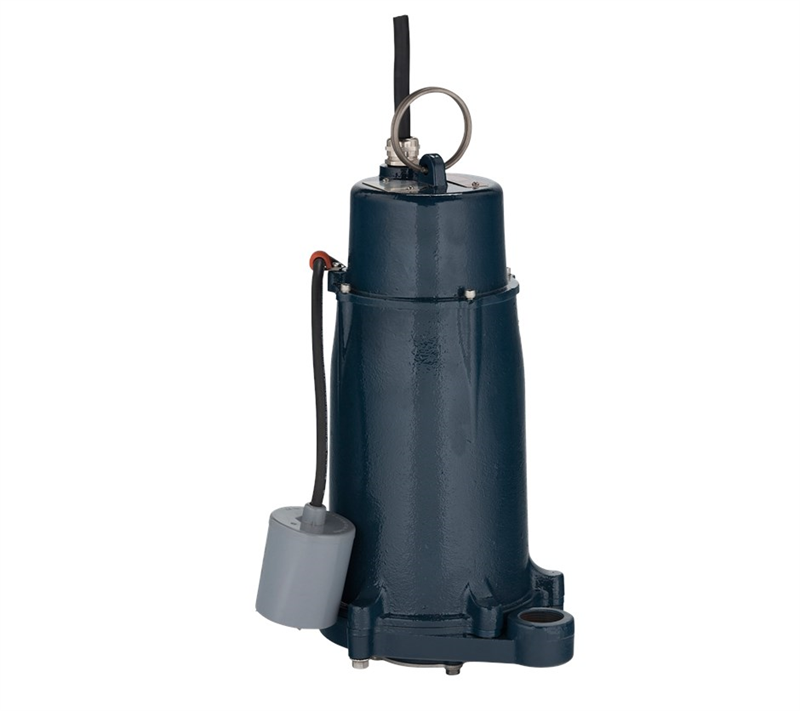

515873 Little Giant Grinder Pump (2 HP, 208-230 Volts, 30' Cord)
515873 Little Giant Grinder Pump (2 HP, 208-230 Volts, 30' Cord)
SKU:515873
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Little Giant 515873, Grinder Pumps Type, 2 HP, 208-230 Volts, 30' Cord,
| Applications | |
| FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist | |
| Features | |
| Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage | |
| Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage | |
| Start/Run components encased in oil-free chamber requiring no control panel | |
| Carbon/Ceramic mechanical seals | |
| Deflection-resistant, short motor shaft | |
| Corrosion-resistant brass impeller minimizes downtime and maintenance | |
| Seven-vane, angled face, non-clogging, balanced impeller | |
| Tight cutting clearances for superior grinding at 414,000 cuts per minute | |
| Epoxy-coated finish for corrosion resistance and durability | |
| Built-in overload protection prevents over-current/temperature damage | |
| GLK-SST Grinder Leg Kit included on 515861 | |
Specifications | |
Brand |
Little Giant |
Catalog Number |
515873 |
Type |
Grinder Pumps |
Series |
IGP-A |
Model |
IGP-A231-20 |
HP |
2 |
Float |
Included |
Volts |
208-230 |
Hz |
60 |
Full Load Amps / Watts |
13.9/3200 |
Cord |
30' |
GPM @ 20' |
32 |
GPM @ 40' |
31 |
GPM @ 60' |
30 |
GPM @ 80' |
25 |
GPM @ 100' |
20 |
GPM @ 120' |
10 |
Shut-Off |
130 |
PSI |
56 |
Weight (lbs) |
104 |
RPM |
3450 |
Motor Design |
Single-phase, capacitor start, capacitor run |
Insulation Class |
F |
Motor Cover O-ring |
Nitrile |
Overload Protection |
Internal, on winding thermal protector |
Motor Shaft |
AISI 300 series stainless steel |
Ball Bearing-Upper |
Single row ball, 6203 |
Ball Bearing-Lower |
Single row ball, 6306 |
Seal Housing |
Cast iron with epoxy-coating |
Mechanical Seal |
Carbon/ceramic |
Volute |
Cast iron with epoxy-coating |
Impeller |
Brass |
External Hardware |
300 series stainless steel |
Support Documents (pdf) |
